Angular Brg, 3215/5215, 30 Deg, 75 mm Bore MPN:5215M
Angular Brg, 3215/5215, 30 Deg, 75 mm Bore

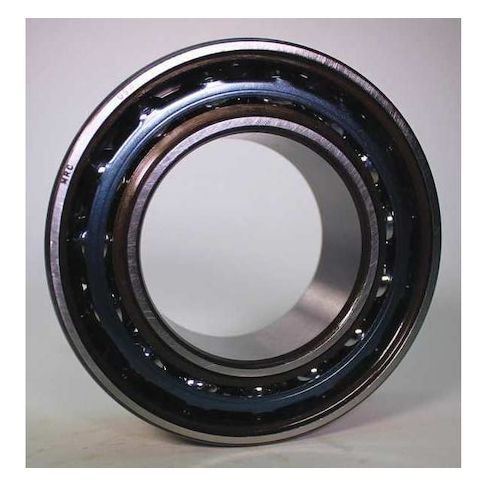

The MRC 75mm angular contact ball bearing is a high-performance solution for demanding applications. Designed for use in extreme temperatures (-20°C to 125°C) and high-speed environments (up to 4,300 RPM), this bearing is ideal for use in precision machinery, industrial equipment, and heavy-duty machinery. Its alloy steel construction and ABEC 1 rating ensure exceptional durability and accuracy. With a maximum load capacity of 108,000 N, this bearing is suitable for use in high-load applications such as gearboxes, pumps, and motors. Its compact design and low-friction properties make it an excellent choice for applications where space and efficiency are critical.
Top product features:
- Angular contact design allows for high precision and smooth operation in applications with high radial and axial loads.
- Two-row bearing design provides increased load capacity and stability.
- Maximum operating speed of 4,300 RPM supports high-speed applications.
Top product applications:
- High-speed industrial machinery
- Robotics and automation systems
- Precision medical equipment
Angular Contact Ball Bearing, Bearing Industry Number 3215/5215, Bore Diameter 75 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 4,300 RPM, Maximum Temperature 257 Degrees F, Minimum Temperature -4 Degrees F, Number of Rows Two, Outside Diameter 130 mm, Overall Width 41.3 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.25
- Package Width: 5.25
- Package Height: 1.75
- Package Weight: 4.52
Product info last updated on January 14, 2026 10:52pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
