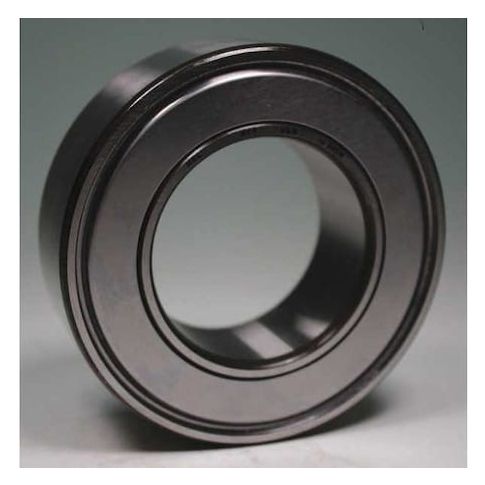

Bearing, 80mm, 128, 000 N, Double Shield MPN:5216MFF
Bearing, 80mm, 128, 000 N, Double Shield
This high-performance 80mm double shield bearing from MRC is designed for demanding applications requiring precise angular contact. With a maximum speed of 3,800 RPM and a temperature range of -20 to 125°C, it's suitable for use in various industries, including aerospace, automotive, and industrial machinery. The bearing's double shielded design provides excellent protection against contamination and wear, while its polyrex lubricant ensures smooth operation. Its compact size and high load capacity make it ideal for use in applications such as gearboxes, pumps, and motors, where precise positioning and high reliability are critical.
Top product features:
- Double shielded closure provides improved protection from contaminants and debris
- Angular contact bearing design allows for higher axial loads and greater precision
- Polyrex lubricant material provides extended bearing life and improved performance in a wide temperature range
Top product applications:
- High-speed industrial machinery
- Precision medical equipment
- Aerospace applications
Angular Contact Ball Bearing, Bearing Industry Number 3216/5216, Bore Diameter 80 mm, Cage Material Steel, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 3,800 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 140 mm, Overall Width 44.4 mm, Ring Material Alloy Steel, System of Measurement Metric
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.75
- Package Width: 5.75
- Package Height: 2.00
- Package Weight: 5.80
Product info last updated on January 31, 2026 3:58am UTC
Category: Bearings, V-belts and Power Transmission Equipment
