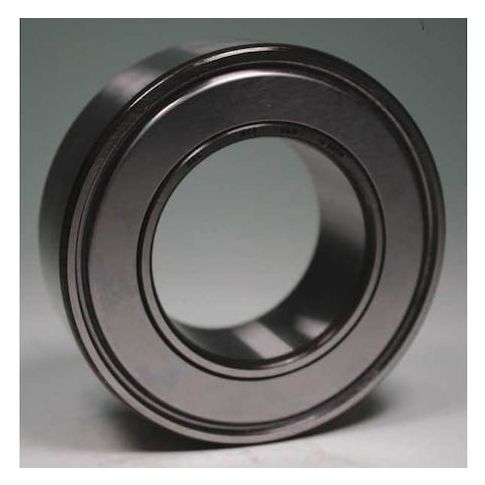

Bearing, 25mm, 34, 100 N, Double Shield MPN:5305MFF
Bearing, 25mm, 34, 100 N, Double Shield
This high-performance 25mm Angular Contact Ball Bearing from MRC is designed for demanding applications. With a contact angle of 30 degrees and a maximum speed of 10,000 RPM, it provides smooth operation and long lifespan. The double shielded design protects against dust and contaminants, while the polyrex lubricant ensures optimal performance. Suitable for use in high-temperature environments up to 125°C and extreme temperatures as low as -20°C, this bearing is ideal for applications in robotics, aerospace, and industrial machinery, including gearboxes, motors, and pumps. Its compact size and high-speed capabilities make it an excellent choice for precision applications.
Top product features:
- Double Shielded closure protects the bearing from debris and contamination
- Angular Contact Bearing design allows for high precision and high speed operation
- Polyrex lubricant provides long-lasting lubrication and reduces maintenance
Top product applications:
- Industrial machinery such as gearboxes and pumps
- Aerospace applications including aircraft and satellite components
- High-speed machinery such as turbines and centrifuges
Angular Contact Ball Bearing, Bearing Industry Number 3305/5305, Bore Diameter 25 mm, Cage Material Steel, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 10,000 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 62 mm, Overall Width 25.4 mm, Ring Material Alloy Steel, System of Measurement Metric
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.75
- Package Width: 2.75
- Package Height: 1.25
- Package Weight: 0.83
Product info last updated on February 24, 2026 11:44am UTC
Category: Bearings, V-belts and Power Transmission Equipment
