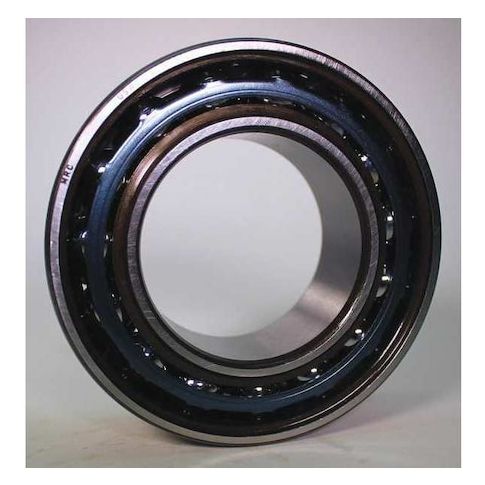

Angular Brg, 3306/5306, 30 Deg, 30 mm Bore MPN:5306M
Angular Brg, 3306/5306, 30 Deg, 30 mm Bore
This 30mm angular contact ball bearing from MRC is a high-performance solution for a wide range of applications. Its 30-degree contact angle and two-row design provide exceptional support and load-carrying capacity, making it ideal for use in high-speed and high-temperature environments. With a maximum speed of 8,500 RPM and a temperature range of -20 to 125 degrees C, this bearing is suitable for use in industrial machinery, robotics, and other applications where precision and reliability are critical. Its compact size and durable construction make it an excellent choice for designers and engineers seeking a reliable and efficient bearing solution.
Top product features:
- Angular contact design allows for high precision and smooth operation in applications with radial and axial loads.
- Two-row configuration enables the bearing to support both radial and thrust loads, providing increased stability and durability.
- Maximum speed of 8,500 RPM makes the bearing suitable for high-speed applications, such as in machinery and equipment.
Top product applications:
- High-speed industrial machinery
- Aerospace applications
- Precision instruments
Angular Contact Ball Bearing, Bearing Industry Number 3306/5306, Bore Diameter 30 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 8,500 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 72 mm, Overall Width 30.2 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 1.50
- Package Weight: 1.25
Product info last updated on January 14, 2026 11:24pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
