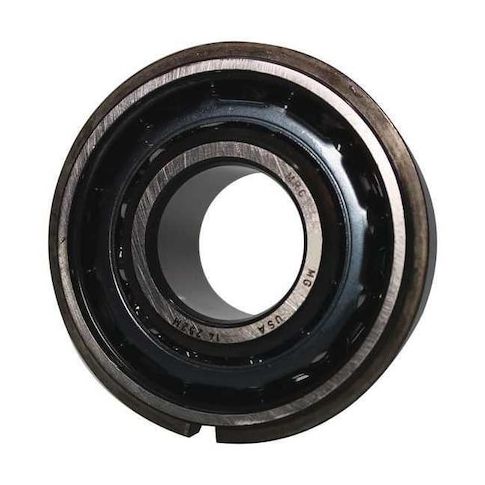

Bearing, 30mm, 46, 800 N, Steel, Snap-Ring MPN:5306MG
Bearing, 30mm, 46, 800 N, Steel, Snap-Ring
The MRC 30mm Angular Contact Ball Bearing is a high-performance bearing designed for demanding applications. Its 30-degree contact angle and two-row configuration provide excellent support and load-carrying capacity, making it ideal for use in high-speed, high-temperature environments. Suitable for applications in the aerospace, automotive, and industrial sectors, this bearing offers improved efficiency, reduced vibration, and increased lifespan. Its compact design and high-speed capabilities make it a versatile choice for use in gearboxes, motors, and other machinery, where reliability and precision are critical. With a lead time of just 6 days, this bearing is ready to meet the demands of your most challenging projects.
Top product features:
- Angular contact bearing design for high-speed applications
- Two-row construction for increased load capacity and stability
- Alloy steel ring material for durability and resistance to high temperatures
Top product applications:
- High-speed machinery such as turbines and generators
- Aerospace applications including aircraft and helicopter components
- Industrial equipment such as pumps and gearboxes
Angular Contact Ball Bearing, Bearing Industry Number 3306/5306, Bore Diameter 30 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 8,500 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 72 mm, Overall Width 30.2 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 1.50
- Package Weight: 1.28
Product info last updated on January 16, 2026 8:42am UTC
Category: Bearings, V-belts and Power Transmission Equipment
