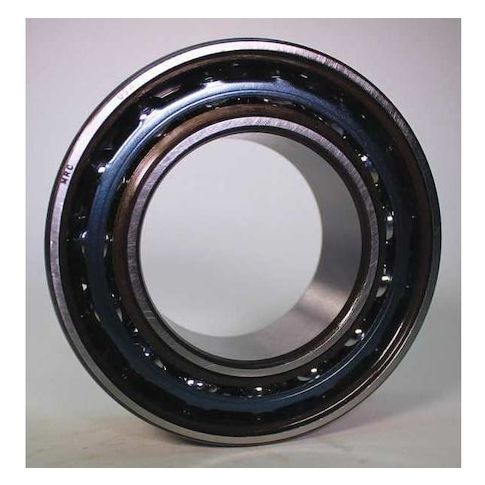

Bearing, 60mm, 134, 000 N, Steel MPN:5312M
Bearing, 60mm, 134, 000 N, Steel
This high-performance 60mm angular contact ball bearing from MRC is designed for demanding applications where precision and reliability are crucial. With a maximum load capacity of 134,000 N and a maximum speed of 4,500 RPM, it can handle high-stress environments. Suitable for use in industrial machinery, robotics, and heavy machinery, this bearing features a 30-degree contact angle and is constructed with alloy steel for added durability. Its compact design and high-speed capabilities make it an ideal choice for applications requiring precise movement and minimal vibration, such as in gearboxes, motors, and pumps.
Top product features:
- 60mm bore diameter provides a compact design suitable for applications with limited space constraints.
- Two-row bearing configuration offers increased load-carrying capacity and improved stability.
- 30-degree contact angle allows for precise angular contact and reduced friction in high-precision applications.
Top product applications:
- Heavy machinery and equipment
- Industrial gearboxes and transmissions
- Aerospace and defense applications
Angular Contact Ball Bearing, Bearing Industry Number 3312/5312, Bore Diameter 60 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 4,500 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 130 mm, Overall Width 54 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.25
- Package Width: 5.25
- Package Height: 2.25
- Package Weight: 6.72
Product info last updated on January 14, 2026 1:21pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
