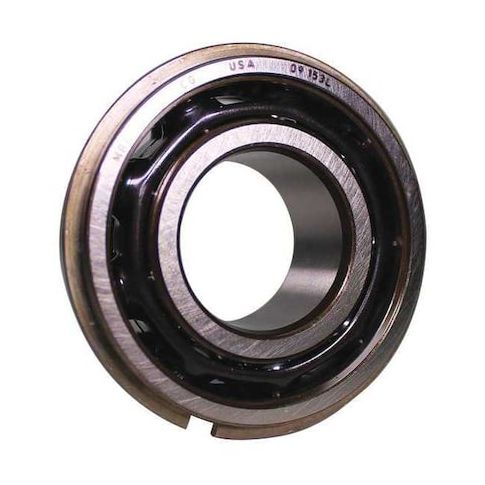

Angular Brg, 3314/5314, 30 Deg, 70 mm Bore MPN:5314CG
Angular Brg, 3314/5314, 30 Deg, 70 mm Bore
This 70mm angular contact ball bearing from MRC is designed for heavy-duty applications that require high precision and reliability. With a maximum load capacity of 153,000 N and a maximum speed of 3,800 RPM, it's ideal for use in machinery and equipment that operate in extreme temperatures, from -20°C to 125°C. The bearing's open design and 30-degree contact angle make it suitable for a wide range of applications, including gearboxes, pumps, and motors. Its high-quality steel construction and ABEC 1 rating ensure long-lasting performance and smooth operation, making it a reliable choice for demanding industrial environments.
Top product features:
- Angular Contact Ball Bearing design allows for high-speed operation up to 3,800 RPM.
- Steel cage material provides durability and resistance to wear.
- 30-degree contact angle enables precise alignment and smooth rotation.
Top product applications:
- High-speed machinery such as pumps, compressors, and gearboxes
- Industrial equipment such as conveyor belts, rollers, and idlers
- Aerospace and defense applications such as aircraft and helicopter components
Angular Contact Ball Bearing, Bearing Industry Number 3314/5314, Bore Diameter 70 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 3,800 RPM, Maximum Temperature 257 Degrees F, Minimum Temperature -4 Degrees F, Number of Rows Two, Outside Diameter 150 mm, Overall Width 63.5 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 2.75
- Package Weight: 10.26
Product info last updated on January 27, 2026 3:52am UTC
Category: Bearings, V-belts and Power Transmission Equipment
