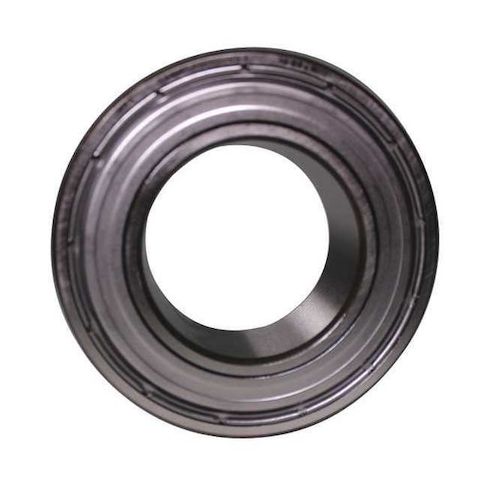

Bearing, 75mm, 168, 000 N, Double Shield MPN:5315CFF
Bearing, 75mm, 168, 000 N, Double Shield
This high-performance 75mm double shield bearing from MRC is designed for demanding applications that require precision and reliability. Its angular contact ball bearing design allows for high-speed operation and precise positioning, making it ideal for use in robotics, CNC machines, and other precision equipment. The double shielded design provides long-lasting protection against dust and moisture, while the polyrex lubricant ensures smooth operation. With a maximum temperature range of -20 to 125°C and a maximum speed of 3,600 RPM, this bearing is suitable for use in a variety of industrial and commercial applications, including food processing, medical equipment, and textile machinery.
Top product features:
- Double shielded closure provides protection from dust and contaminants
- Polyrex lubricant is used for long-lasting and reliable bearing performance
- 30-degree contact angle allows for high precision and smooth operation in angular applications
Top product applications:
- Heavy machinery applications such as construction equipment and industrial machinery
- Aerospace applications such as aircraft and helicopter gearboxes
- Industrial gearboxes and power transmission systems
Angular Contact Ball Bearing, Bearing Industry Number 3315/5315, Bore Diameter 75 mm, Cage Material Steel, Closure Double Shielded, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Lubricant Material Polyrex, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 3,600 RPM, Maximum Temperature 125 Degrees C, Minimum Temperature -20 Degrees C, Number of Rows Two, Outside Diameter 160 mm, Overall Width 68.3 mm, Ring Material Alloy Steel, System of Measurement Metric
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 6.50
- Package Height: 3.00
- Package Weight: 11.86
Product info last updated on January 27, 2026 3:44am UTC
Category: Bearings, V-belts and Power Transmission Equipment
