Angular Bearing, 3320/5320, 30 Deg MPN:5320C
Angular Bearing, 3320/5320, 30 Deg

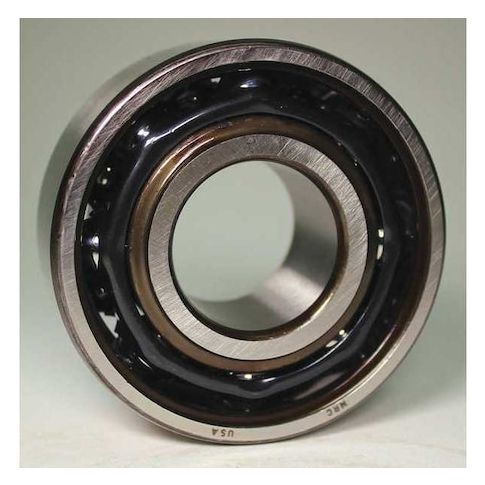

This high-performance 100mm angular contact ball bearing from MRC is designed for demanding applications requiring precise positioning and high-speed operation. Its 30-degree contact angle and two-row configuration enable smooth rotation and reduced vibration, making it ideal for use in industrial machinery, robotics, and aerospace equipment. With a maximum speed of 2,600 RPM and operating temperature range of -20 to 125°C, this bearing is suitable for use in a variety of harsh environments. Its steel cage and alloy steel rings provide exceptional durability and resistance to wear, ensuring long-lasting performance and reduced maintenance costs.
Top product features:
- Angular contact design for supporting radial and axial loads
- Two-row bearing configuration for increased load capacity
- Maximum speed of 2,600 RPM for high-performance applications
Top product applications:
- Industrial machinery
- Robotics and automation systems
- High-speed printing and packaging equipment
Angular Contact Ball Bearing, Bearing Industry Number 3320/5320, Bore Diameter 100 mm, Cage Material Steel, Closure Open, Contact Angle 30 Degrees , Contact Bearing Type Angular Contact, Matched Bearing Type Not Matched/Single Bearing, Maximum Speed 2,600 RPM, Maximum Temperature 257 Degrees F, Minimum Temperature -4 Degrees F, Number of Rows Two, Outside Diameter 215 mm, Overall Width 82.6 mm, Ring Material Alloy Steel, System of Measurement Metric, ABEC Rating 1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.75
- Package Width: 8.75
- Package Height: 3.50
- Package Weight: 28.66
Product info last updated on January 16, 2026 5:40am UTC
Category: Bearings, V-belts and Power Transmission Equipment
