Direct Drive Blower Motor, 1/15 hp MPN:5204A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5246631

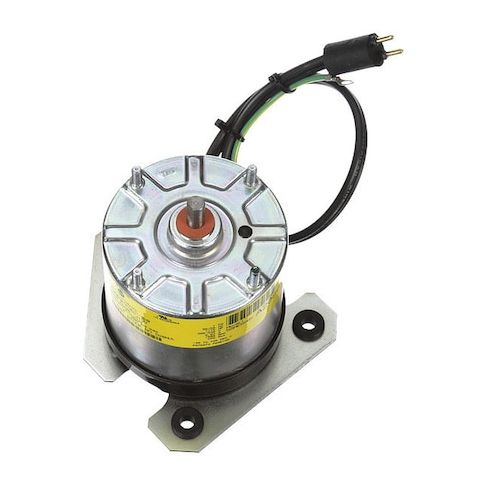

Direct Drive Blower Motor, 1/15 hp
The Morrill Direct Drive Blower Motor is a reliable and efficient solution for various applications. With a single-phase design and 1/15 HP rating, it provides a consistent airflow for a range of uses, including ventilation systems, industrial fans, and commercial HVAC systems. Its electronic motor thermal protection ensures continuous operation, while its totally enclosed air-over design protects against dust and debris. The motor's compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing overall system performance. Suitable for continuous duty cycles, this motor is a cost-effective and reliable choice for demanding applications.
Top product features:
- Direct Drive design provides a more efficient and reliable operation
- Motor Thermal Protection Electronic ensures motor safety and prolongs lifespan
- Totally Enclosed Air-Over motor enclosure design protects the motor from environmental contaminants and debris
Top product applications:
- HVAC Systems
- Industrial Fans
- Air Handling Units
ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/15 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 0.63 A, 3.3 Frame, Usable @ 208V Yes, Usable @ 200V No, Motor Thermal Protection Electronic, 60/50 Hz Hz, Ins. Class B, Motor Shaft Rotation CCWLE, Max. Ambient Temp. 25 Degrees C, Duty Cycle Continuous, Lead Length 15 in, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Ring/Stud, Motor Mounting Position Vertical Shaft Down
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.10
- Package Width: 6.60
- Package Height: 10.60
- Package Weight: 4.10
Product info last updated on February 8, 2026 11:05am UTC
Category: Motors
