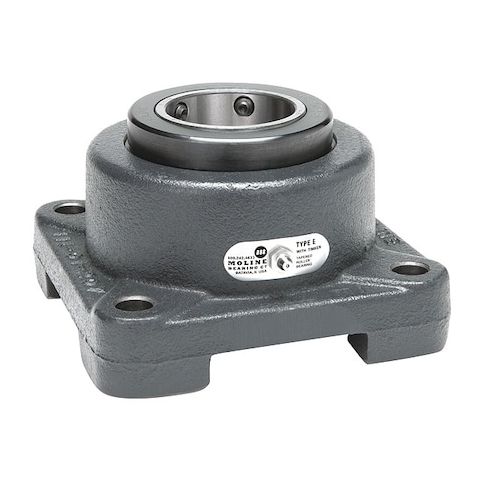

4 Holes, Square Housing, 4 Bolt Flange Bearing, Roller, 3-7/16 in Dia, Cast Iron, Set Screw MPN:19311307
4 Holes, Square Housing, 4 Bolt Flange Bearing, Roller, 3-7/16 in Dia, Cast Iron, Set Screw
The Moline Bearing Flange Brg is a heavy-duty, tapered roller bearing designed for demanding applications. With a 3 7/16in bore and a robust cast iron housing, this bearing provides reliable support for machinery and equipment in harsh environments. Its double-sealed design ensures long-lasting performance, while lithium complex grease lubrication maintains optimal bearing health. Suitable for use in industrial settings, the Moline Bearing Flange Brg is ideal for applications such as manufacturing, construction, and mining, where high loads and extreme temperatures are common. Its compact design and fixed expansion type make it a versatile solution for a wide range of industries.
Top product features:
- Tapered roller bearing design provides smooth and quiet operation
- Double sealed closure protects against dust and moisture ingress
- Cast iron housing provides structural integrity and durability
Top product applications:
- Heavy-duty machinery
- Industrial equipment
- Agricultural machinery
Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 3 7/16 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Lubricant Material Lithium Complex Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 7 in, Number of Mount Holes 4, Overall Height 9 1/4 in, Overall Length 9 1/4 in, Overall Width 5 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 10.50
- Package Height: 5.50
- Package Weight: 8.10
Product info last updated on January 14, 2026 4:12pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
