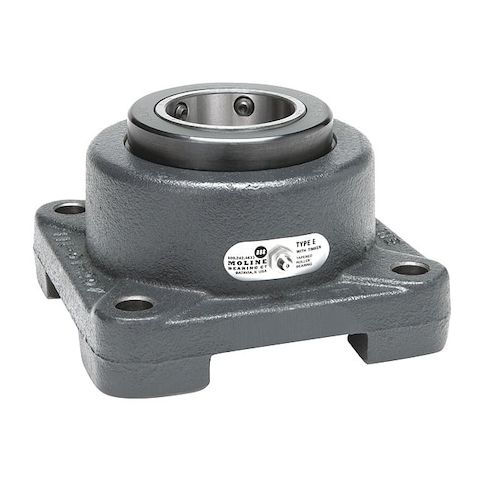

4 Holes, Square Housing, 4 Bolt Flange Bearing, Tapered Roller, 3-1/2 in Dia, Cast Iron, Set Screw MPN:19311308
4 Holes, Square Housing, 4 Bolt Flange Bearing, Tapered Roller, 3-1/2 in Dia, Cast Iron, Set Screw
This Moline Bearing Flng Brg is a high-performance tapered roller bearing suitable for a wide range of applications, including industrial machinery, heavy equipment, and automotive manufacturing. Its alloy steel construction and lithium complex grease lubrication provide long-lasting durability and smooth operation in extreme temperatures from -40 to 250 degrees Fahrenheit. The bearing's square housing and fixed expansion type design ensure secure mounting and minimal maintenance. With a 3 1/2 inch bore diameter and 4 mount holes, this bearing is ideal for use in applications requiring high load capacity and precise movement, such as gearboxes, pumps, and conveyor systems.
Top product features:
- Tapered roller bearing design for smooth rotation and reduced friction
- Double-sealed closure for protection against dust and moisture
- Cast iron housing for added strength and durability
Top product applications:
- Heavy Duty Construction Equipment
- Industrial Gearboxes
- Power Generation Systems
Flange Bearing, Bearing Insert Material Alloy Steel, Bearing Insert Type Tapered Roller, Bore Diameter 3 1/2 in, Bore Type Cylindrical, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Housing Type Square, Lubricant Material Lithium Complex Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Height 7 in, Number of Mount Holes 4, Overall Height 9 1/4 in, Overall Length 9 1/4 in, Overall Width 5 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.50
- Package Width: 10.50
- Package Height: 5.50
- Package Weight: 57.00
Product info last updated on January 31, 2026 6:50am UTC
Category: Bearings, V-belts and Power Transmission Equipment
