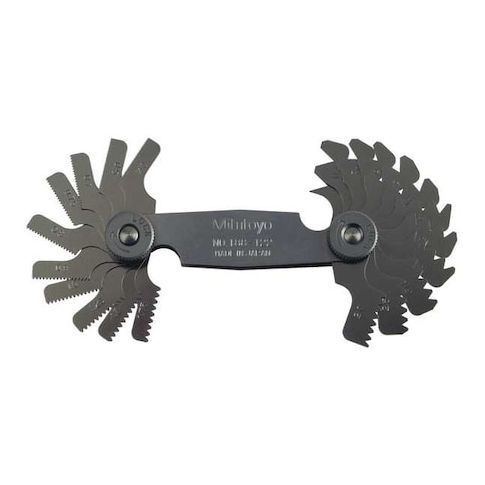

Screw Pitch Gage, 0.4mm to 7mm, 21 Leaves MPN:188-122
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3535673
Screw Pitch Gage, 0.4mm to 7mm, 21 Leaves
Accurately measure threads with precision and ease using this 21-leaf screw pitch gage from Mitutoyo. Ideal for machinists, engineers, and quality control specialists, this gauge set covers a wide range of thread pitches from 0.4mm to 7mm, ensuring precise measurements for metric threads. The 60-degree thread angle and steel construction guarantee durability and reliability. Use this gage to inspect and verify threads in various applications, including aerospace, automotive, and industrial manufacturing. Its compact size and lightweight design make it easy to handle and store, making it an essential tool for any professional who works with threads.
Top product features:
- Measures thread pitches from 0.4mm to 7mm
- Includes 21 leaves for measuring various thread pitches
- Has a locking device to ensure secure measurements
Top product applications:
- Thread inspection and verification
- Checking thread pitch and angle on metric screws and bolts
- Measuring thread pitch for quality control in manufacturing
Thread Pitch Gauge Set, Included Thread Pitch - mm 0.4 mm, 0.5 mm, 0.7 mm, 0.75 mm, 0.8 mm, 0.9 mm, 1 mm, 1.25 mm, 1.5 mm, 1.75 mm, 2 mm, 2.5 mm, 3 mm, 3.5 mm, 4 mm, 4.5 mm, 5 mm, 5.5 mm, 6 mm, 6.5 mm, 7 mm, Maximum Thread Pitch - mm 7 mm, Maximum TPI 7 mm, Minimum Thread Pitch - mm 0.4 mm, Minimum TPI 0.4 mm, Number of Leaves 21, Thread Angle 60 Degrees , Thread Type Metric, Gauge Material Steel, Locking Device Yes
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 0.80
- Package Height: 3.70
- Package Weight: 0.10
Product info last updated on February 6, 2026 3:31pm UTC
Category: Measuring and Marking Tools
