Screw Pitch Gage, 0.25 to 2.5mm MPN:188-153
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3441216

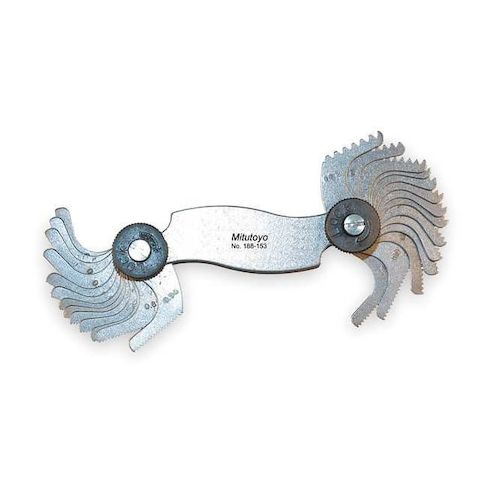

Screw Pitch Gage, 0.25 to 2.5mm
Accurately measure and verify thread pitches with the Mitutoyo Screw Pitch Gage, a versatile tool covering a range of metric thread sizes from 0.25 to 2.5mm. This precision gauge features 28 leaves and a 60-degree thread angle, making it suitable for a variety of applications, including quality control, inspection, and manufacturing. The compact design and locking device ensure easy handling and precise measurements. Ideal for use in industries such as aerospace, automotive, and precision engineering, this gage helps ensure consistent and reliable thread performance, reducing the risk of errors and rework.
Top product features:
- Measures thread pitches from 0.25 to 2.5mm
- Has 28 leaves for precise thread measurement
- Locks in place to prevent accidental movement
Top product applications:
- Inspecting and measuring metric threads for quality control
- Measuring and verifying thread pitches on machinery and equipment
- Setting and verifying thread pitches on precision instruments and devices
Thread Pitch Gauge Set, Included Thread Pitch - mm 0.25 mm to 2.5 mm, Maximum Thread Pitch - mm 2.5mm, Maximum TPI 2.5mm, Minimum Thread Pitch - mm 0.25 mm, Minimum TPI 0.25 mm, Number of Leaves 28, Thread Angle 60 Degrees , Thread Type Metric, Gauge Material Steel, Locking Device Yes
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 2.50
- Package Height: 1.00
- Package Weight: 0.13
Product info last updated on February 28, 2026 7:57am UTC
Category: Measuring and Marking Tools
