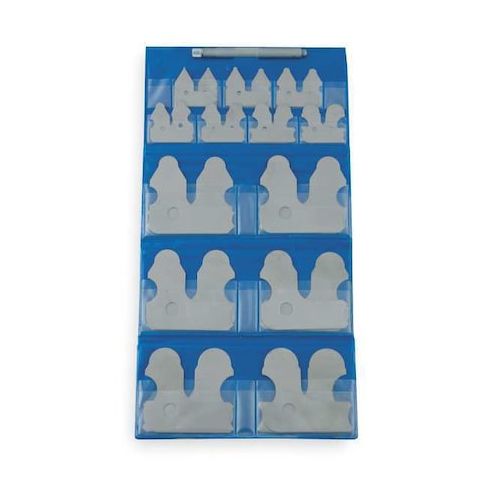

Radius Gage Set, 0.010-0.500, 26 Leaves MPN:186-906
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2279846
Radius Gage Set, 0.010-0.500, 26 Leaves
Accurately measure complex curves with the Mitutoyo Radius Gage Set, a versatile tool for precision measurement. This 26-leaf gage set covers a range of 0.01-0.5 inches, with incremental measurements of 0.005, 0.01, 0.02, and 0.05 inches. Suitable for use in various applications, including quality control, inspection, and manufacturing, this gage set provides +/-0.0016 inch accuracy. It's ideal for measuring convex and concave radii, making it a valuable asset for industries such as automotive, aerospace, and medical device manufacturing. With its compact design and easy-to-read measurements, this gage set streamlines your measurement process and ensures precise results.
Top product features:
- Measures radii with increments of 0.005 in, 0.01 in, 0.02 in, or 0.05 in
- Has 26 leaves for precise measurements
- Accurate to +/-0.0016 in
Top product applications:
- Inspecting and measuring the radius of small parts such as watch components or jewelry
- Measuring the radius of curved surfaces on precision instruments like microscopes or telescopes
- Checking the radius of small bore holes or tubing in medical devices or laboratory equipment
Radius Gauge Set, Range 0.01 in to 0.03 in by 0.005 in, 0.04 in to 0.1 in by 0.01 in, 0.12 in to 0.3 in by 0.02 in, 0.35 in to 0.5 in by 0.05 in, Accuracy +/-0.0016 in, Configuration 5 Convex & Concave Radii, Dimension Type Angle, Included Sizes .005 in (.010 in -.030 in), .010 in (.040 in -.100 in), .020 in (.120 in -.300 in), .050 in (.350 in -.500 in), Increments 0.005 in (0.01 in to 0.03 in), 0.01 in (0.04 in to 0.1 in), 0.02 in (0.12 in to 0.3 in), 0.05 in (0.35 in to 0.5 in)
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 3.90
- Package Height: 1.00
- Package Weight: 0.50
Product info last updated on February 1, 2026 5:37am UTC
Category: Measuring and Marking Tools
