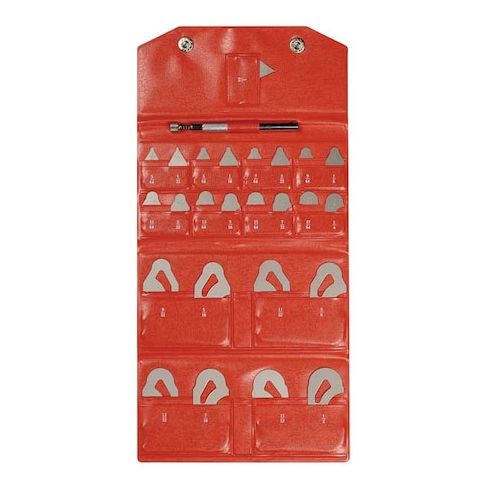

Radius Gage Set, 1/64-1/2 In, 25 Leaves MPN:186-901
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G1601302
Radius Gage Set, 1/64-1/2 In, 25 Leaves
Accurately measure curved surfaces with the Mitutoyo Radius Gage Set, featuring 25 leaves that cover a range of 1/64 in to 1/2 in. This versatile set includes 5 convex and concave radii, allowing for precise measurements in a variety of applications, including machining, inspection, and quality control. The gage's high accuracy of +/-0.0016 in ensures reliable results, while the satin chrome finish and fitted case with indexed pockets provide durability and convenience. Ideal for use in industries such as aerospace, automotive, and medical device manufacturing, this radius gage set is a valuable addition to any metrology toolbox.
Top product features:
- Measures 25 different radii with increments of 1/64 in and 1/32 in
- Provides 5 convex and concave radii measurements
- Accurate to +/-0.0016 in
Top product applications:
- Measuring complex curved surfaces in precision engineering and machining
- Inspecting and verifying the radii of spherical and cylindrical parts in quality control
- Checking the fit and finish of curved components in automotive and aerospace manufacturing
Radius Gauge Set, Range 1/64 in to 17/64 in by 64ths, 9/32 in to 1/2 in by 32nds, Accuracy +/-0.0016 in, Configuration 5 Convex & Concave Radii, Dimension Type Angle, Included Sizes 1/16 in (1/16 in -1/2 in, 9/16 in-1), Increments 1/64 in (1/64 in to 17/64 in), 1/32 in (9/32 in to 1/2 in), Minimum Measurement - Inch 1/64 in, Number of Leaves 25, Set Style Fixed Leaves With Handle, Case Included Yes, Case Type Pouch, Finish Satin Chrome, Includes Fitted Case With Indexed Pockets
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 3.90
- Package Height: 0.90
- Package Weight: 0.55
Product info last updated on February 1, 2026 11:11am UTC
Category: Measuring and Marking Tools
