Radius Gage Set, 9/16 - 1 Inch By 16Ths MPN:186-905
Radius Gage Set, 9/16 - 1 Inch By 16Ths

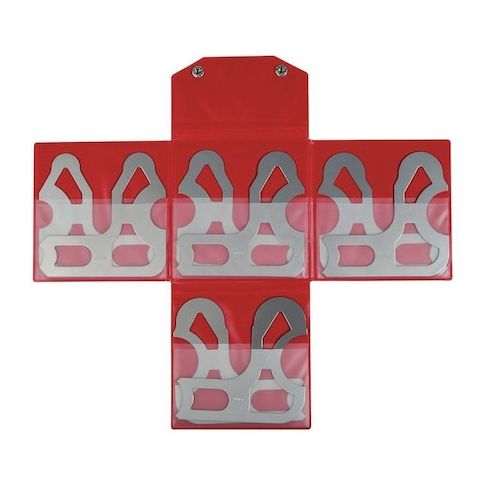

Accurately measure complex curves and radii with the Mitutoyo Radius Gage Set. This versatile tool features 5 convex and concave radii, allowing you to measure a range of 9/16 to 1 inch in 1/16 inch increments. The set's high accuracy of +/-0.0016 inches ensures precise measurements for a variety of applications, including manufacturing, quality control, and engineering. The ergonomic design and fixed leaves with handle make it easy to use and maneuver, while the included fitted case with indexed pockets keeps the tool organized and protected. Ideal for measuring complex curves in automotive, aerospace, and other industries.
Top product features:
- Measures 9/16 in to 1 in with increments of 1/16 in
- Accurate to +/0.0016 in
- Includes 5 convex and concave radii for various measurement needs
Top product applications:
- Measuring complex curved surfaces in manufacturing
- Inspecting the radius of circular holes in machining
- Checking the roundness of pipes and tubes in plumbing and HVAC
Radius Gauge Set, Range 9/16 in to 1 in by 16ths, Accuracy +/-0.0016 in, Configuration 5 Convex & Concave Radii, Dimension Type Angle, Included Sizes 1/16 in (9/16 in-1 in), Increments 1/16 in (9/16 in to 1 in), Minimum Measurement - Inch 9/16 in, Number of Leaves 8, Set Style Fixed Leaves With Handle, Case Included Yes, Case Type Pouch, Finish Satin Chrome, Includes Fitted Case With Indexed Pockets, Maximum Measurement - Inch 1 in
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.30
Product info last updated on February 14, 2026 6:47pm UTC
Category: Measuring and Marking Tools
