Wheel Plate Assembly, 121.4lbf Load Axial MPN:MV0WPAX
Wheel Plate Assembly, 121.4lbf Load Axial

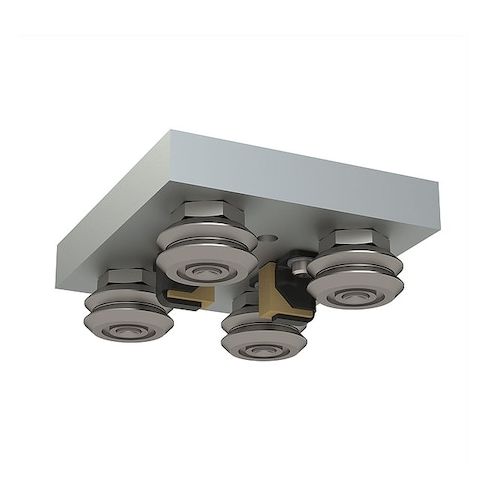

This MinVee Wheel Plate Assembly is designed for use with DualVee Guide Wheels, providing a reliable and efficient linear motion solution. With a maximum axial load of 121.4 lbf and a carriage made of durable aluminum, it can withstand heavy loads and harsh environments. The assembly's compact size and low profile make it ideal for applications where space is limited, such as in medical devices, laboratory equipment, and industrial automation. Its high load capacity and smooth operation make it a great choice for applications requiring precise and reliable motion, such as in robotics, aerospace, and semiconductor manufacturing.
Top product features:
- Carriage Height is adjustable to 17.2 mm
- Carriage Type is Ball, allowing for smooth movement
- Radial Load is limited to a maximum of 110.2 lbf, preventing damage to the product
Top product applications:
- Linear Motion Systems
- Precision Machining and Grinding
- Automated Assembly Lines
Wheel Plate Assembly, Carriage Height 17.2 mm, Carriage Length 50.8 mm, Carriage Width 44.45 mm, Carriage Material Aluminum, Roller Material Carbon Steel, Radial Load - Maximum 110.2 lbf, Axial Load - Maximum 121.4 lbf, Manufacturer Size 0, Dynamic Load Capacity 121.4 lbf, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 14 mm, For Use With DualVee Guide Wheel, Static Load Capacity 121.4 lbf, Combined Carriage and Rail Height 20.02 mm, Series MinVee
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.75
- Package Height: 0.70
- Package Weight: 0.19
Product info last updated on February 28, 2026 10:29am UTC
