1-1/2" Solder Low Lead Brass Swing Check Valve MPN:UP0968000112
Free Shipping
In Stock

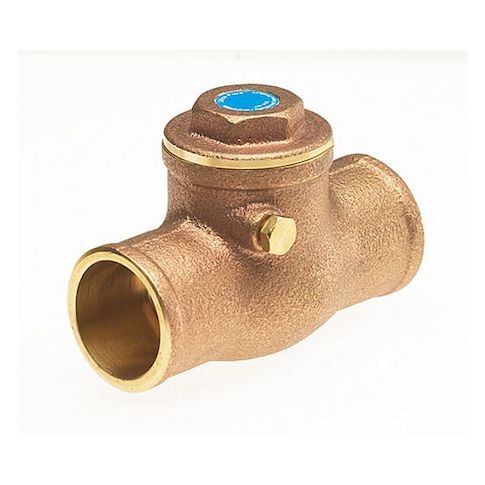

This 1-1/2in Solder Low Lead Brass Swing Check Valve from Milwaukee is designed for reliable flow control in a variety of applications. Its single flow design and inline swing mechanism ensure efficient operation, while the brass body and seal materials withstand temperatures from -20 to 150 degrees F and pressures up to 200 psi. Suitable for use in water supply lines, this valve is ideal for residential and commercial plumbing systems, as well as industrial applications where precise flow control is required. Its compact size and horizontal/vertical mounting orientation make it easy to integrate into existing systems.
Top product features:
- Solder Low Lead Brass construction allows for safe and reliable operation in a variety of environments.
- Inline Swing design enables easy installation and maintenance of the valve.
- Cracking pressure of 0.1 psi ensures minimal backflow and maintains system integrity.
Top product applications:
- Plumbing systems in residential and commercial buildings
- Industrial piping systems for water and steam distribution
- HVAC systems for heating and cooling applications
Milwaukee Valve UP968 series 1-1/2 in swing check valve with an inline body is configured for one-direction flow control with a swing check mechanism for reverse-flow closure. It has a low lead brass body with sweat x sweat solder connections and is rated for general purpose service with gas, oil, and water. It features a full-flow design with a cracking pressure of 0.1 psi and a flow rating of 76 gpm.
Key Features:
- Type: Swing check valve with inline body design
- Material: Low lead brass construction with brass check mechanism and brass seal
- seat material listed as brass/metal
- Size: 1-1/2 in nominal valve size with 1-1/2 in female sweat connections on both ends
- Connection Type: Solder / Sweat x Sweat
- Flow Capacity: Cv 76
- flow rating 76 gpm
- Pressure: 200 psi WOG
- maximum water pressure 200 psi at 150 degrees F
- Temperature Range: -20 degrees F minimum operating temperature to 150 degrees F maximum operating temperature
- Mounting Orientation: Horizontal or vertical
- multi-positional mounting
- Dimensions: 5 in length, 4.33 in overall length, 2 in width, 3 19/64 in overall height, 2 1/4 in cap to inlet center
- Standards: NSF 61, NSF/ANSI 372
- Silent Check: Standard
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 3.50
- Package Height: 2.50
- Package Weight: 1.96
