1" Solder Low Lead Brass Swing Check Valve MPN:UP0968000100
Free Shipping
In Stock
The Milwaukee 1in Solder Low Lead Brass Swing Check Valve is a reliable and efficient solution for various industrial and commercial applications. Its single-flow design allows for smooth water flow while preventing backflow, making it ideal for use in plumbing systems, HVAC, and water treatment facilities. The valve's brass body and metal seat ensure durability and resistance to corrosion, while its low lead soldering meets industry standards. With a maximum temperature rating of 150°F and a pressure rating of 200 psi, this valve is suitable for a wide range of applications, including residential and commercial plumbing, and is available for immediate shipment.
Top product features:
- Low lead content for reduced environmental impact
- Swing check valve design allows for easy installation and maintenance
- Operates at 0.1 psi cracking pressure for precise control of fluid flow
Top product applications:
- Plumbing systems in residential and commercial buildings
- Industrial piping systems for water and steam distribution
- HVAC systems for heating and cooling applications

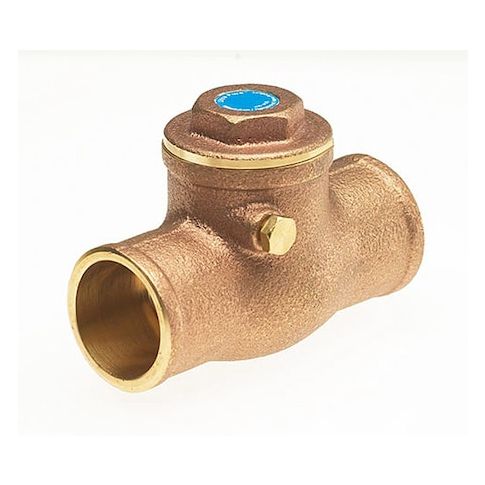

MILWAUKEE VALVE UP0968000100 is a 1 in. swing check valve with an inline low lead brass body and solder/sweat x sweat female connections. It uses a hinged swing mechanism and is configured for one-direction flow and reverse-flow checking. This valve is for gas, oil, and water applications within specified pressure and temperature ratings. Cv 31
- flow rate 31 gpm
- cracking pressure 0.1 psi.
Key Features:
- Valve type: Swing check valve with inline body style.
- Material: Low lead brass construction with brass body, brass check mechanism, brass seal, and brass seat.
- Connections: 1 in. female sweat connections on both sides
- solder/sweat x sweat connection type.
- Pressure rating: 200 psi WOG
- maximum water pressure 200 psi at 150 degrees F.
- Temperature range: -20 degrees F minimum operating temperature to 150 degrees F maximum operating temperature.
- Flow capacity: Cv 31
- flow rate 31 gpm.
- Installation: Horizontal or vertical mounting
- multi-positional mounting.
- Standards: NSF 61, NSF/ANSI 372.
- Dimensions: 3.46 in. overall length, 2 19/32 in. overall height, 1 1/2 in. width.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 2.50
- Package Height: 1.60
- Package Weight: 0.82
