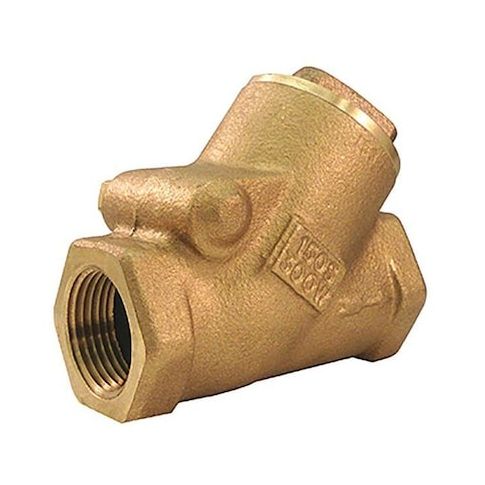

1-1/2" FNPT Bronze Swing Y Check Valve MPN:515Y 1 1/2"
Free Shipping
In Stock
The 1-1/2in FNPT Bronze Swing Y Check Valve from Milwaukee is a reliable and durable solution for various applications. This single-check valve features a Y swing design, ensuring efficient flow and minimizing pressure loss. Suitable for use in both horizontal and vertical orientations, it can withstand extreme temperatures, from -20°F to 425°F, and pressures up to 300 psi. Ideal for water and steam applications, it provides a maximum flow rate of 76 gpm. Its bronze construction ensures resistance to corrosion and wear, making it a great choice for use in industrial, commercial, and residential settings.
Top product features:
- 1-1/2in FNPT Bronze Swing Y Check Valve has a single flow design.
- The valve is constructed with a bronze body and bronze seal.
- The valve has a cracking pressure of 0.5 psi.
Top product applications:
- Steam Distribution System
- Water Supply Lines
- Industrial Process Piping
MILWAUKEE VALVE 515Y is a 1-1/2 in swing Y check valve with a bronze body and FNPT x FNPT threaded connections. Intended for one-way flow applications in general-purpose piping systems for gas, oil, steam, and water within stated product ratings. The Y-style body and swing mechanism has a full-flow design, with a 0.5 psi cracking pressure, 76 gpm flow rating, and Cv of 56.
Key Features:
- Valve type: Swing Y check valve with Y-style body and swing check mechanism.
- Size and connections: 1-1/2 in nominal valve size with female NPT connections on both ends.
- Material: Cast bronze body with bronze check mechanism, seat, and seal materials.
- Pressure ratings: 300 psi WOG, 150 psi SWP, and 300 psi at 150 degrees F maximum water pressure.
- Temperature range: -20 degrees F to 425 degrees F.
- Flow specifications: Full-flow design with 76 gpm flow rating and Cv of 56.
- Installation orientation: Horizontal or vertical mounting.
- Dimensions: 4-5/8 in length, 4 in overall height, and 1-3/4 in width.
- Standards: Meets multiple ASTM and MSS standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.50
- Package Width: 10.50
- Package Height: 3.50
- Package Weight: 16.00
