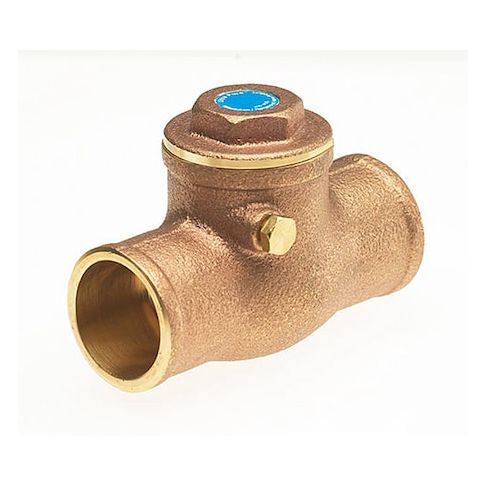

1-1/4" Solder Low Lead Brass Swing Check Valve MPN:UP0968000114
Free Shipping
In Stock
The Milwaukee 1-1/4in Solder Low Lead Brass Swing Check Valve is a reliable and efficient solution for various applications. Ideal for use in plumbing, irrigation, and HVAC systems, this valve ensures one-way flow and prevents backflow, reducing the risk of contamination and damage. Its low lead brass construction provides excellent durability and resistance to corrosion, while its inline swing design allows for easy installation and maintenance. With a maximum temperature rating of 150°F and a maximum water pressure of 200 psi, this valve is suitable for a wide range of applications, including residential and commercial use.
Top product features:
- 1-1/4in Solder Low Lead Brass Swing Check Valve
- Has a single flow design for efficient operation
- Is an inline swing check valve with a brass body for durability
Top product applications:
- Piping systems for residential and commercial applications
- Industrial process control systems
- Water supply and irrigation systems
The MILWAUKEE VALVE UP0968000114 is a 1-1/4 in. swing check valve with an inline brass body and solder/sweat x sweat connections. It is configured for one-direction flow applications with a swing check mechanism. This valve is rated for gas, oil, and water service, and features a full-flow design, 0.1 psi cracking pressure, and horizontal or vertical mounting options.
Key Features:
- Valve type: Swing check valve with inline swing mechanism and one-direction flow design.
- Material: Low-lead brass construction with brass body, brass check mechanism, brass seal, and brass seat.
- Connections: 1-1/4 in. female sweat x sweat solder connections on both ends.
- Flow capacity: Cv 54 and rated flow of 54 gpm.
- Pressure rating: 200 psi WOG
- maximum water pressure 200 psi at 150 degrees F.
- Temperature range: -20 degrees F minimum operating temperature to 150 degrees F maximum operating temperature.
- Certifications/standards: NSF 61 and NSF/ANSI 372.
- Mounting: Horizontal or vertical
- multi-positional installation.
- Dimensions: 4 7/16 in. length, 2 29/32 in. overall height, and 1 3/4 in. width.
- Additional details: No counterweight
- standard silent check
- valve series UP968.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 1.26
