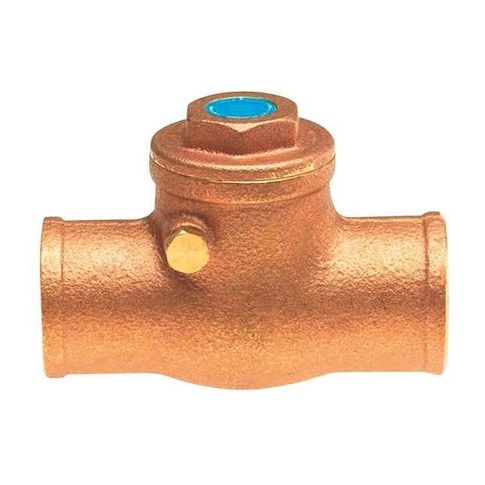

2" Solder Low Lead Brass Swing Check Valve MPN:UP0968000200
Free Shipping
In Stock
The Milwaukee 2in Solder Low Lead Brass Swing Check Valve is a reliable and efficient solution for various applications. Suitable for use in horizontal or vertical orientations, this valve ensures a secure check of fluid flow, preventing backflow and ensuring a consistent system operation. Its brass construction and metal seat provide durability and resistance to corrosion, while its low lead content meets regulatory requirements. The valve's high flow rate of 131 gpm and maximum pressure rating of 200 psi make it ideal for use in water supply systems, HVAC applications, and other industrial settings where reliable fluid control is essential.
Top product features:
- Swing design allows for easy installation and adjustment
- Low lead brass construction provides corrosion resistance and durability
- Cracking pressure of 0.1 psi enables precise control over fluid flow
Top product applications:
- Plumbing systems for residential and commercial buildings
- Industrial piping systems for chemical processing and manufacturing
- Water treatment and filtration systems
The MILWAUKEE VALVE UP0968000200 is a 2 in. swing check valve with an inline low-lead brass body and solder sweat x sweat connections. It uses a hinged swing mechanism for one-direction flow applications and reverse-flow checking in general-purpose gas, oil, and water piping systems. This valve features a full-flow design, a 0.1 psi cracking pressure, and horizontal or vertical installation.
Key Features:
- 2 in. swing check valve with inline swing mechanism.
- Low-lead brass construction with brass body, brass check mechanism, brass seal, and brass seat.
- Female sweat connections on both ends
- sweat x sweat / solder connection type.
- Flow capacity: 131 gpm
- Cv: 131.
- Pressure rating: 200 psi WOG
- maximum water pressure 200 psi at 150 degrees F.
- Operating temperature range: -20 degrees F to 150 degrees F.
- Horizontal or vertical installation
- multi-positional mounting.
- NSF 61 and NSF/ANSI 372 listed.
- Dimensions: 6 1/8 in. length, 3 27/32 in. overall height, 2 1/2 in. width.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 2.88
