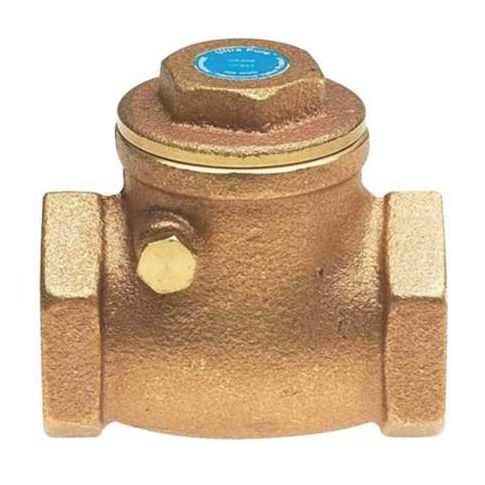

1-1/2" Threaded Low Lead Brass Swing Check Valve MPN:UP0967000112
Free Shipping
In Stock
The Milwaukee 1-1/2in Threaded Low Lead Brass Swing Check Valve is a reliable and efficient solution for various fluid control applications. Suitable for horizontal or vertical mounting, this valve ensures one-way flow and prevents backflow, making it ideal for use in HVAC, plumbing, and industrial processes. Its brass construction and low lead design meet or exceed industry standards, while its 0.5 psi cracking pressure and 200 psi water pressure rating provide exceptional performance. With a flow rate of 76 gpm and a maximum temperature rating of 150°F, this valve is a versatile and durable choice for a wide range of applications.
Top product features:
- 1-1/2in Threaded Low Lead Brass Swing Check Valve
- Swing design allows for inline installation and easy maintenance
- Has a cracking pressure of 0.5 psi for precise control of fluid flow
Top product applications:
- Water Treatment Systems
- Industrial Process Control
- Pumping Stations
The MILWAUKEE VALVE UP0967000112 is a 1-1/2 in. threaded swing check valve with an inline brass body and brass swing mechanism. It is configured as a swing check valve for one-way flow applications in gas, oil, and water piping systems within the listed pressure and temperature ratings. This valve has female NPT connections on both ends, a full-port body design, and can be mounted horizontally or vertically.
Key Features:
- Valve type: Swing check valve with inline body design
- Size: 1-1/2 in. nominal valve size, pipe size, and connection size on both ends
- Connection: FNPT x FNPT threaded ends
- Body material: Low lead brass with brass check mechanism
- seal and seat material: brass/metal
- Flow capacity: 76 gpm, Cv 76
- Cracking pressure: 0.5 psi
- Pressure rating: 200 psi WOG
- maximum water pressure 200 psi at 150 degrees F
- Temperature range: -20 degrees F to 150 degrees F
- Mounting orientation: Horizontal or vertical
- multi-positional mounting
- Certifications/standards: NSF 61, NSF/ANSI 372
- Valve series: UP967
- Overall dimensions: 3.23 in. overall length, 3-19/64 in. overall height, 2 in. width
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 3.50
- Package Height: 2.50
- Package Weight: 1.92
