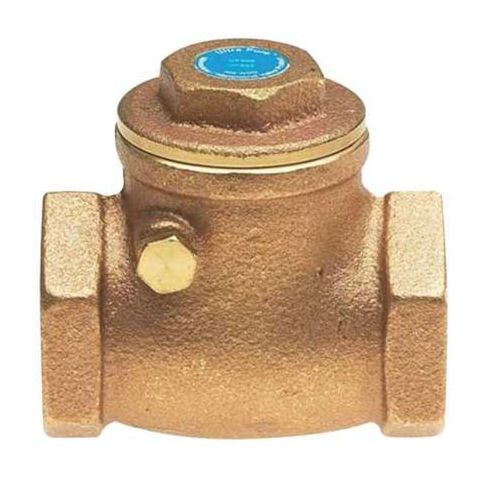

2" Threaded Low Lead Brass Swing Check Valve MPN:UP0967000200
Free Shipping
In Stock
This 2in Threaded Low Lead Brass Swing Check Valve from Milwaukee is a reliable and efficient solution for various applications. Suitable for horizontal and vertical installations, it ensures one-way flow and prevents backflow, making it ideal for water supply systems, irrigation, and industrial processes. With a flow rate of 131 gpm, it can handle moderate to high water pressures, and its low lead brass construction meets or exceeds industry standards for water quality. Its compact size and lightweight design make it easy to install and maintain, making it a great choice for a wide range of industrial and commercial applications.
Top product features:
- 2-inch threaded connection for easy installation
- Swing check valve design allows for one-way flow control
- Operates at temperatures up to 150 Degrees F and pressures up to 200 psi
Top product applications:
- Water treatment systems
- Steam system bypass lines
- Industrial piping systems
The MILWAUKEE VALVE UP0967000200 is a 2 in. threaded swing check valve with an inline brass body and low-lead brass construction. It uses a hinged swing mechanism for one-direction flow control in compatible gas, oil, and water piping systems. This valve features female NPT connections on both ends, a full-flow design, and mounting orientation: horizontal or vertical.
Key Features:
- 2 in. nominal valve size with FNPT x FNPT threaded connections
- Low-lead brass construction with brass body, brass check mechanism, brass seat, and brass seal
- Swing check mechanism with inline body style and single-flow design
- Cracking pressure: 0.1 psi
- Flow rate: 131 gpm
- Cv: 131
- Maximum pressure: 200 psi WOG
- maximum water pressure: 200 psi at 150 degrees F
- Operating temperature range: -20 degrees F to 150 degrees F
- Mounting orientation: horizontal or vertical
- mounting position: multi positional
- NSF 61
- Standards: NSF/ANSI 372
- Overall length: 3.7 in.
- overall height: 3-27/32 in.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 4.00
- Package Height: 3.00
- Package Weight: 3.07
