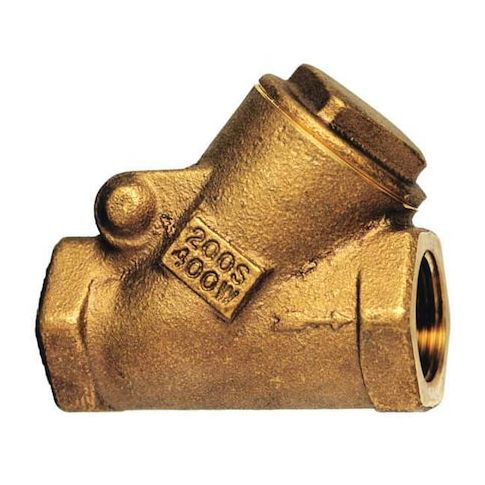

Swing Y Check Valve, 3 in, 509Y Series, FNPT x FNPT, Bronze Body MPN:509Y 3"
Free Shipping
In Stock
The Milwaukee 3in FNPT Bronze Swing Y Check Valve is a reliable and durable solution for various industrial applications, including water treatment, chemical processing, and HVAC systems. Its bronze construction ensures long-lasting performance in extreme temperatures, from -20°F to 425°F, and withstands pressures up to 200 psi at 150°F. This check valve features a single flow design with a Y swing mechanism, allowing for efficient flow control and minimizing backflow. Suitable for horizontal or vertical mounting, it's an ideal choice for applications where water or steam flow needs to be regulated.
Top product features:
- It has a single flow design to allow for efficient fluid flow.
- The valve is designed with a Y swing mechanism for easy operation.
- It is made with bronze materials for durability and resistance to corrosion.
Top product applications:
- Steam Power Plant Applications
- Pumping Stations for Irrigation Systems
- Boiler Feedwater Systems
The MILWAUKEE VALVE 509Y is a 3 in. swing Y check valve with a bronze body and FNPT x FNPT connections. It is intended for use in one-way flow applications in general purpose piping systems for gas, oil, steam, and water. The Y-style body and swing mechanism have a full-flow specification, with a 0.5 psi cracking pressure and a rated flow of 297 gpm.
Key Features:
- Valve type: Swing Y check valve with Y-pattern body design
- Body material: Cast bronze
- check mechanism, seat, and seal are bronze
- Connection size and type: 3 in. FNPT x FNPT with female connections on both ends
- Flow capacity: 297 gpm
- Cv: 240
- Pressure ratings: 200 psi WOG, 125 psi SWP, 125 psi WSP, and 200 psi at 150 degrees F maximum water pressure
- Temperature range: -20 degrees F to 425 degrees F
- Mounting orientation: Horizontal or vertical
- Full-flow specification: Yes
- Overall length: 7 7/8 in.
- Standards: ASTM B16, ASTM B505, ASTM B584, MSS SP-80
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 8.00
- Package Height: 5.00
- Package Weight: 15.95
