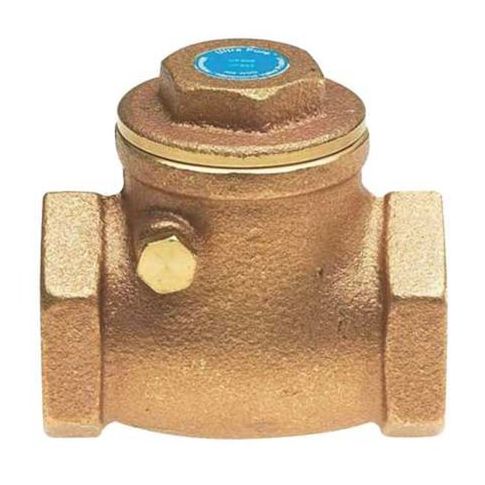

1" Threaded Low Lead Brass Swing Check Valve MPN:UP0967000100
Free Shipping
In Stock
This 1in Threaded Low Lead Brass Swing Check Valve from Milwaukee is designed for reliable flow control in a variety of applications. Suitable for horizontal or vertical installation, it features a single flow design and inline swing mechanism. The valve's brass body and metal seat ensure durability and resistance to corrosion, while its low lead design meets or exceeds federal and state regulations. With a maximum water pressure of 200 psi and a flow rate of 31 gpm, this valve is ideal for use in residential and commercial plumbing systems, as well as in industrial processes that require precise flow control.
Top product features:
- Threaded design allows for easy connection to pipes and fittings
- Swing check valve design allows for flow in one direction and prevents backflow
- Brass construction provides resistance to corrosion and durability in a wide temperature range
Top product applications:
- Water supply systems
- Steam heating systems
- HVAC systems
MILWAUKEE VALVE UP0967000100 is a 1 in threaded swing check valve with an inline brass body and low lead brass construction. It uses a hinged swing mechanism configured for one-direction flow applications with reverse-flow checking. This valve is rated for gas, oil, and water service, with FNPT x FNPT connections for threaded piping systems.
Key Features:
- 1 in nominal valve size with FNPT x FNPT female threaded connections
- Inline swing design with single flow path construction
- Low lead brass body with brass check mechanism
- seal and seat material listed as brass/metal
- Cracking pressure: 0.5 psi
- Flow capacity: 31 gpm
- Cv: 31
- Maximum pressure: 200 psi WOG
- maximum water pressure: 200 psi at 150 degrees F
- Operating temperature range: -20 degrees F to 150 degrees F
- Mounting orientation: horizontal or vertical
- mounting position: multi-positional
- Certifications and standards: NSF 61, NSF/ANSI 372
- Overall length: 2.52 in
- overall height: 2-19/32 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 1.80
- Package Weight: 0.80
