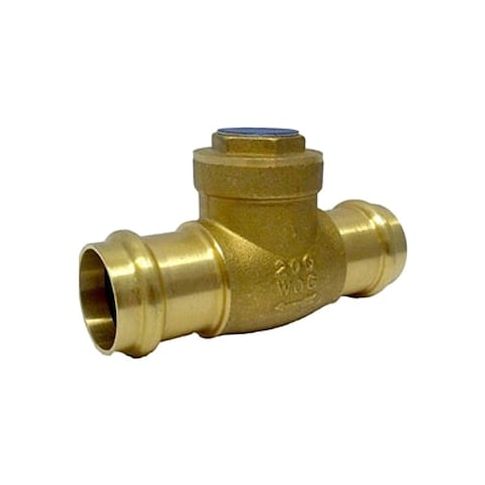

Swing Check Valve, UP969 Series, 2 in, Press x Press, Lead Free Brass Body MPN:UP0969000200
Free Shipping
In Stock
The Milwaukee Swing Check Valve is a reliable solution for portable water applications. Its horizontal swing mechanism and lead-free brass construction ensure durable performance in demanding environments. With a maximum temperature rating of 250°F and water pressure rating of 200 psi, this valve is suitable for a wide range of applications, including industrial and commercial water systems. Its compact design and easy installation make it a convenient choice for plumbers and contractors. The valve's ANSI 372 certification ensures compliance with industry standards, providing peace of mind for users.
Top product features:
- Horizontal swing mechanism
- Lead-free brass body
- Brass seat for secure sealing
Top product applications:
- Portable Water
- Horizontal Swing Check Valve, Mechanism and Body Design for Horizontal Swing Check Valve, Mechanism and Body Design
- Horizontal Swing Check Valve, Mechanism and Body Design
MILWAUKEE VALVE UP969 is a 2 in swing check valve with a horizontal swing mechanism and inline body style. It is intended for potable water service and is configured for one-direction flow and reverse-flow closure in piping systems. This valve features a lead-free brass body with press x press connections and is intended for horizontal mounting.
Key Features:
- 2 in nominal valve size with 2 in press connections on both ends
- Horizontal swing check mechanism with inline body design
- Lead-free brass body
- Media: Water
- Application: Potable water
- Cracking pressure: 0.5 psi
- Flow rate: 131 gpm
- Cv: 131
- Maximum operating pressure: 200 psi
- Maximum water pressure: 200 psi at 250 degrees F
- Operating temperature range: -20 degrees F to 150 degrees F
- Overall length: 7.16 in
- Overall height: 2 31/64 in
- Seat, seal, and check mechanism material: Brass
- NSF 61 certified
- ANSI 372
- Silent check: Standard
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 7.50
- Package Height: 4.10
- Package Weight: 3.70
