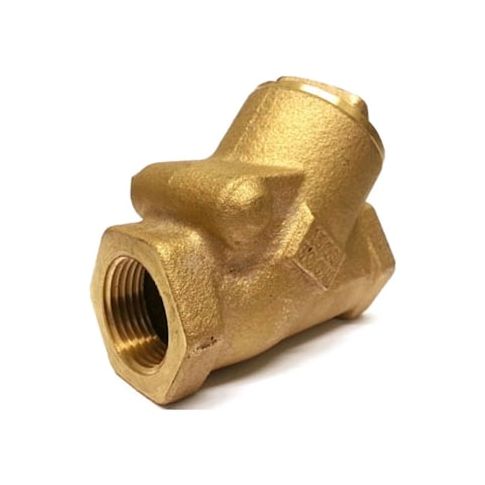

1-1/2" FNPT Bronze Swing Y Check Valve MPN:509Y 1 1/2"
Free Shipping
In Stock
The Milwaukee 1-1/2in FNPT Bronze Swing Y Check Valve is a reliable and efficient solution for a variety of applications, including commercial and industrial plumbing systems. Its bronze construction ensures durability and resistance to corrosion, while its single-flow design allows for smooth and consistent water flow. With a cracking pressure of 0.5 psi, this valve is ideal for use in systems where low pressure is a concern. Its horizontal and vertical mounting options make it versatile and easy to install. Suitable for temperatures up to 425°F, this valve is perfect for use in hot water systems, steam lines, and more.
Top product features:
- The product has a Flow Design of Single, allowing for unidirectional flow.
- The product is a Y Swing Check Valve, which enables easy installation and maintenance.
- The product has a Cracking Pressure of 0.5 psi, allowing for precise control over fluid flow.
Top product applications:
- Industrial Water Systems
- Steam Distribution Systems
- HVAC Systems
The MILWAUKEE VALVE 509Y 1-1/2 in. FNPT bronze swing Y check valve is a check valve for use in one-way flow applications involving gas, oil, steam, and water lines. It features a Y-style body with a swing check mechanism, Cv 56 with 76 gpm flow rating, and female NPT connections on both ends. The cast bronze body, bronze seat and seal, and brass check mechanism have a specified temperature range of -20 to 425 Degrees F.
Key Features:
- Valve type: Swing Y check valve with Y-pattern body and swing mechanism
- Size: 1-1/2 in. nominal valve size with 1-1/2 in. FNPT x FNPT connections
- Body material: Cast bronze body with bronze seat and seal
- Internal mechanism: Brass swing check mechanism
- Media compatibility: Gas, oil, steam, and water
- Pressure ratings: 200 psi WOG, 125 psi SWP/WSP, and 200 psi at 150 Degrees F max water pressure
- Temperature range: -20 to 425 Degrees F
- Cracking pressure: 0.5 psi
- Flow capacity: Cv 56 with 76 gpm flow rating
- Mounting orientation: Horizontal or vertical
- Overall dimensions: 4 in. overall length, 4 in. overall height, 1-3/4 in. width
- Standards: ASTM B16, ASTM B505, ASTM B584, MSS SP-80
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.60
- Package Width: 4.50
- Package Height: 3.00
- Package Weight: 4.10
