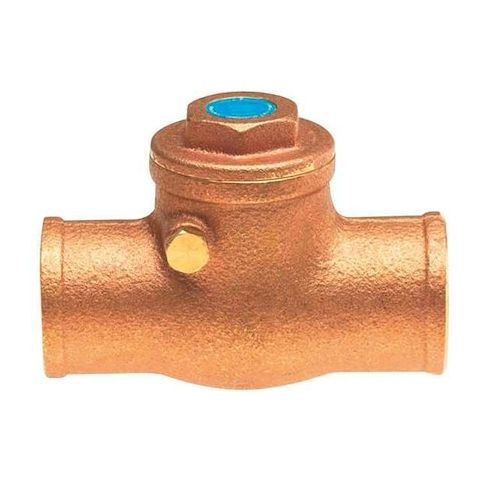

3/4" Solder Low Lead Brass Swing Check Valve MPN:UP0968000034
Free Shipping
In Stock
This 3/4in Solder Low Lead Brass Swing Check Valve from Milwaukee is a reliable and efficient solution for various applications. Ideal for use in plumbing and HVAC systems, it ensures one-way flow of liquids and gases while preventing backflow. The valve's brass construction and low lead soldering make it suitable for water and steam applications. With a maximum temperature rating of 150°F and a maximum water pressure rating of 200 psi, it can withstand demanding conditions. Its compact size and horizontal/vertical mounting orientation make it easy to install in tight spaces, making it a valuable addition to any plumbing or HVAC system.
Top product features:
- The valve has a single flow design for efficient fluid flow.
- The valve is an inline swing check valve that opens and closes with the flow of fluid.
- The valve has a cracking pressure of 0.1 psi for precise control over fluid flow.
Top product applications:
- Plumbing systems for residential and commercial buildings
- Industrial process control systems
- HVAC systems for heating and cooling applications
The MILWAUKEE VALVE UP0968000034 is a 3/4 in. swing check valve with solder (sweat x sweat) female connections and an inline low lead brass body. It uses a swing check mechanism intended for one-direction flow and reverse-flow closure in compatible gas, oil, and water piping systems. This valve is rated for horizontal or vertical mounting and features a full-flow design with a 0.1 psi cracking pressure.
Key Features:
- 3/4 in. nominal valve and pipe size with sweat x sweat solder connections on both sides
- Low lead brass body with brass check mechanism
- seal and seat material listed as brass, with seat material also listed as metal
- Inline swing design with single-flow path and standard, non-silent operation
- Flow rating: 18 gpm with a Cv of 18
- Pressure rating: 200 psi WOG
- maximum water pressure 200 psi at 150 Degrees F
- Temperature range: -20 Degrees F minimum to 150 Degrees F operating maximum
- Mounting orientation: horizontal or vertical
- mounting position: multi positional
- Certifications/standards: NSF 61, NSF/ANSI 372
- Dimensions: 2.85 in. overall length, 2-19/64 in. overall height, 1-1/4 in. width, 1-5/8 in. cap to inlet center, 1-1/2 in. height from cap to inlet center
- No counterweight
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.30
- Package Height: 1.30
- Package Weight: 0.50
