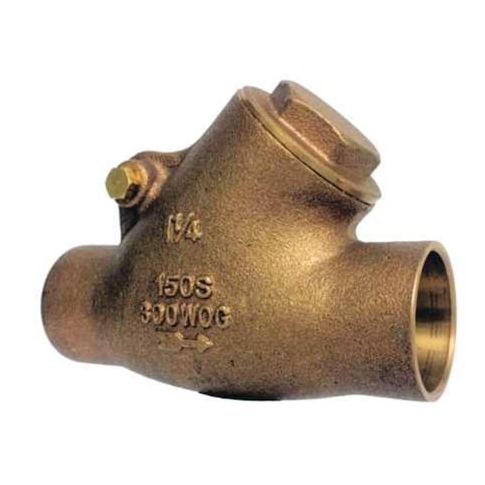

Swing Y Check Valve, 1509Y Series, 2 in, Sweat x Sweat, Bronze Body MPN:1509Y 2"
Free Shipping
In Stock
The Milwaukee 2in Solder Bronze Swing Y Check Valve is a reliable and efficient solution for various applications. This valve is designed for use in horizontal or vertical pipes, and its bronze construction ensures durability and resistance to corrosion. With a cracking pressure of 0.5 psi, it prevents backflow and ensures a safe and secure operation. Suitable for water and steam systems, it can handle temperatures up to 425°F and pressures up to 300 psi. Ideal for use in commercial and industrial settings, this valve is perfect for applications such as HVAC, plumbing, and hydronic heating systems.
Top product features:
- 2in Solder Bronze Swing Y Check Valve has a single flow design.
- The valve has a Y swing mechanism and body design.
- The valve can handle a maximum water pressure of 300 psi at 150 Degrees F.
Top product applications:
- Water supply systems
- Steam distribution systems
- HVAC systems
The MILWAUKEE VALVE 1509Y is a 2 in. swing Y check valve with a bronze body and sweat x sweat connections. It is a one-way valve with a swing check mechanism and Y-style body for reverse-flow control in general-purpose piping systems for compatible chemical, natural gas, steam, and water applications. This valve supports horizontal or vertical mounting and features a full-flow design with a 0.5 psi cracking pressure.
Key Features:
- Valve type: Swing Y check valve with Y-pattern body and swing mechanism
- Body, seat, seal, and check mechanism material: Bronze
- Connection size: 2 in. on both sides
- Connection type: Sweat x sweat
- solder connection
- Flow capacity: 131 gpm
- Cv: 92
- Pressure ratings: 300 psi maximum operating pressure
- 300 psi at 150 degrees F maximum water pressure
- 150 psi WSP maximum steam pressure
- Temperature range: -20 degrees F to 425 degrees F
- Mounting orientation: Horizontal or vertical
- Overall dimensions: 6.38 in. length x 5 1/4 in. height x 2 3/4 in. width
- Standard: MSS SP-80, Type 3
- Valve series: 1509Y
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 5.30
- Package Height: 3.00
- Package Weight: 3.80
