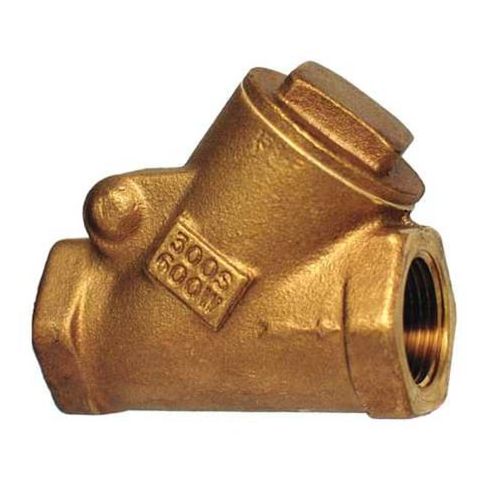

Check Valve, 515Y Series, Swing Y, 1/2 in, FNPT x FNPT, Bronze MPN:515Y 1/2"
Free Shipping
In Stock
The Milwaukee 1/2in FNPT Bronze Swing Y Check Valve is a reliable and durable solution for various applications. Suitable for use in both horizontal and vertical orientations, this valve ensures a tight seal and prevents backflow, making it ideal for plumbing and HVAC systems. Its bronze construction withstands high temperatures and pressures, up to 300 psi and 425°F, while its low cracking pressure of 0.5 psi reduces wear and tear. Perfect for use in commercial and industrial settings, this valve is also suitable for residential applications, providing a long-lasting and efficient flow control solution.
Top product features:
- 1/2in FNPT Bronze Swing Y Check Valve has a single flow design.
- It has a Y swing mechanism and body design.
- It is capable of withstanding a maximum water pressure of 300 psi at 150 Degrees F.
Top product applications:
- Water Supply Systems
- Steam Power Systems
- Industrial Process Control
The MILWAUKEE VALVE 515Y is a 1/2 in swing Y check valve with a bronze body and FNPT x FNPT threaded connections. It uses a swing check mechanism in a Y-style body for directional flow control and is specified for gas, oil, steam, or water service within listed ratings. This valve features a full-flow design, a 0.5 psi cracking pressure, and can be mounted in horizontal or vertical orientations.
Key Features:
- Valve type: Swing Y check valve.
- Body material: Cast bronze
- check mechanism, seat, and seal material: bronze.
- Connections: 1/2 in FNPT x FNPT with female NPT threads on both ends.
- Flow rate: 10 gpm
- Cv: 7.2.
- Pressure ratings: 300 psi WOG, 150 psi SWP, and 300 psi at 150 degrees F maximum water pressure.
- Temperature range: -20 degrees F to 425 degrees F.
- Mounting: Horizontal or vertical.
- Dimensions: 2.625 in overall length, 2-1/4 in overall height, 5/8 in width, and 1-3/4 in cap to inlet center.
- Standards: ASTM B16, ASTM B505, ASTM B584, ASTM B62, MSS SP-80.
- Series: 515Y.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 2.50
- Package Height: 1.60
- Package Weight: 0.85
