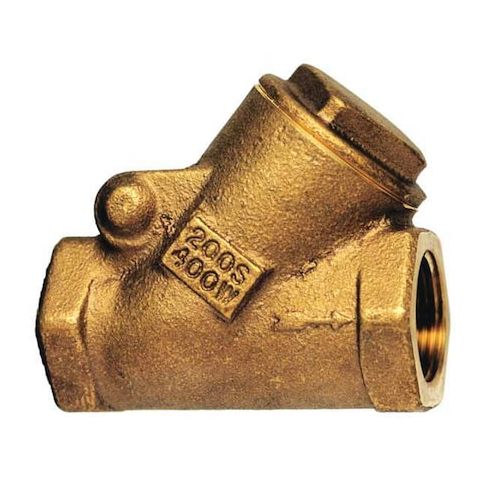

3/4" FNPT Bronze Swing Y Check Valve MPN:509Y 3/4"
Free Shipping
In Stock
The Milwaukee 3/4in FNPT Bronze Swing Y Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical positions, this valve ensures a smooth flow of liquids while preventing backflow. Its bronze construction and 0.5 psi cracking pressure make it ideal for water and steam systems. With a maximum temperature of 425°F and a maximum water pressure of 200 psi, this valve can handle demanding applications. Its compact size and lightweight design make it easy to install and maintain, making it a great choice for industrial, commercial, and residential use.
Top product features:
- It has a single flow design for efficient fluid passage.
- The Y swing mechanism allows for easy installation and maintenance.
- It is made of bronze, a material resistant to corrosion and wear.
Top product applications:
- High-pressure steam distribution systems
- Industrial process control systems
- Pulp and paper mill processing systems
The MILWAUKEE VALVE 509Y 3/4 in. FNPT bronze swing Y check valve is a one-way valve with a Y-style body and swing check mechanism for one-way flow applications in piping systems. It is compatible with gas, oil, steam, and water within the specified pressure and temperature ratings. Full flow: Yes. The valve has a 0.5 psi cracking pressure and a rated flow of 18 gpm.
Key Features:
- 3/4 in. nominal valve size with FNPT x FNPT female threaded connections
- Cast bronze body with bronze seat and seal and a brass check mechanism
- Swing Y design with single-flow configuration
- Compatible media: gas, oil, steam, water
- Maximum water pressure: 200 psi at 150 degrees F
- Maximum steam pressure: 125 psi WSP
- Operating temperature range: -20 degrees F to 425 degrees F
- Mounting orientation: horizontal or vertical
- Cv: 13
- Overall dimensions: 3 in. length, 2-3/8 in. overall height, 1 in. width
- Standards: ASTM B16, ASTM B505, ASTM B584, MSS SP-80
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.80
- Package Height: 1.90
- Package Weight: 1.25
