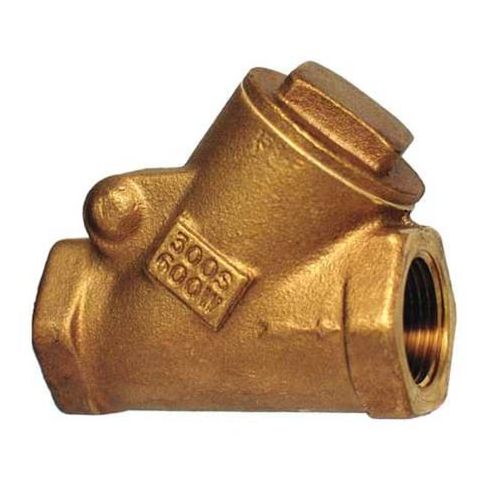

Swing Y Check Valve, 515Y Series, 2 in, FNPT x FNPT, Bronze Body MPN:515Y 2"
Free Shipping
In Stock
The Milwaukee 2in FNPT Bronze Swing Y Check Valve is a reliable and efficient solution for various industrial applications, including water treatment, chemical processing, and HVAC systems. Its single-flow design and Y-swing mechanism ensure smooth fluid flow and prevent backflow, while its bronze construction provides excellent durability and resistance to corrosion. With a cracking pressure of 0.5 psi and a maximum temperature rating of 425°F, this valve can handle demanding conditions. Its compact design and horizontal/vertical mounting orientation make it ideal for use in tight spaces, and its 131 gpm flow rate ensures optimal performance.
Top product features:
- The valve has a Y swing design, allowing for a wide flow path and reduced pressure drop.
- The valve is made from bronze, providing high corrosion resistance and durability.
- The valve is rated for 300 psi at 150°F, ensuring reliable performance under high water pressure conditions.
Top product applications:
- Water treatment systems
- Steam power plants
- Industrial piping systems
The MILWAUKEE VALVE 515Y 2 in. swing Y check valve is a general purpose check valve with a Y-pattern body and swing mechanism. It is intended for one-way flow applications and backflow reduction. The valve features a cast bronze body with bronze check mechanism, seat, and seal materials, and is specified for gas, oil, steam, and water service. Flow capacity: 131 gpm
- Cv: 92.
Key Features:
- Valve type: Swing Y check valve with Y-style body and swing check mechanism
- Size: 2 in. nominal valve size, pipe size, and connection size on both ends
- Connections: FNPT x FNPT female threaded ends
- Body material: Cast bronze
- Internal materials: Bronze check mechanism, seat, and seal
- Cracking pressure: 0.5 psi
- Flow capacity: 131 gpm
- Flow coefficient (Cv): 92
- Pressure ratings: 300 psi WOG, 300 psi at 150 degrees F water, 150 psi WSP steam
- Temperature range: -20 degrees F to 425 degrees F
- Mounting orientation: Horizontal or vertical
- Overall dimensions: 5.875 in. overall length, 5.25 in. overall height, 2.75 in. width
- Meets multiple ASTM and MSS standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.50
- Package Width: 6.00
- Package Height: 3.50
- Package Weight: 7.40
