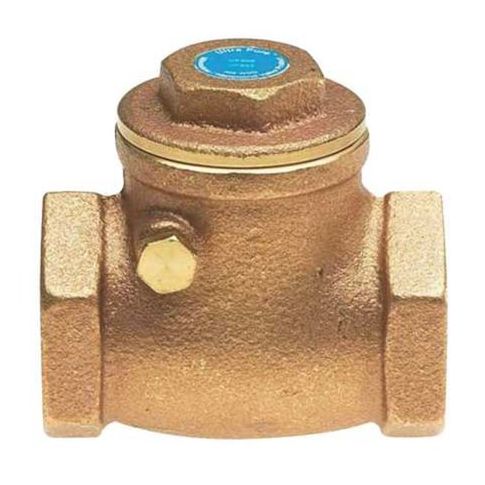

1-1/4" Threaded Low Lead Brass Swing Check Valve MPN:UP0967000114
Free Shipping
In Stock
This 1-1/4in Threaded Low Lead Brass Swing Check Valve from Milwaukee is a reliable and efficient solution for various industrial and commercial applications. Suitable for use in horizontal or vertical orientations, this valve ensures one-way flow and prevents backflow, making it ideal for plumbing systems, water treatment facilities, and steam distribution networks. Its low lead brass construction and metal seat provide excellent durability and resistance to corrosion, while its compact design and low cracking pressure make it easy to install and maintain. With a flow rate of 54 gpm, this valve is perfect for a wide range of applications, including commercial plumbing, water treatment, and HVAC systems.
Top product features:
- Threaded design allows for easy installation and connection to pipes
- Low lead brass construction provides corrosion resistance and durability
- Swing design enables easy flow of fluids in one direction while preventing backflow
Top product applications:
- Industrial plumbing systems
- Water treatment plants
- HVAC systems
The MILWAUKEE VALVE UP0967000114 is a 1-1/4 in. threaded swing check valve with an inline brass body and low-lead brass construction. It uses a hinged swing mechanism intended to permit flow in one direction and close upon reverse flow. This valve is used in applications requiring backflow reduction in general-purpose systems handling gas, oil, or water. It has female NPT connections on both ends, a full-flow design, and can be mounted in horizontal or vertical positions.
Key Features:
- Valve type: Swing check valve with inline body design
- Size: 1-1/4 in. nominal valve size with 1-1/4 in. FNPT x FNPT connections
- Material: Low-lead brass construction with brass body, brass check mechanism, brass seal, and brass seat
- Flow capacity: 54 gpm with Cv of 54
- Cracking pressure: 0.5 psi
- Pressure rating: 200 psi WOG
- maximum water pressure 200 psi at 150 degrees F
- Temperature range: -20 degrees F to 150 degrees F
- Mounting: Horizontal or vertical
- multi-positional
- Certifications/standards: NSF 61, NSF/ANSI 372
- Dimensions: 2.72 in. overall length, 2-29/32 in. overall height, 1-3/4 in. width
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 3.30
- Package Height: 2.30
- Package Weight: 1.28
