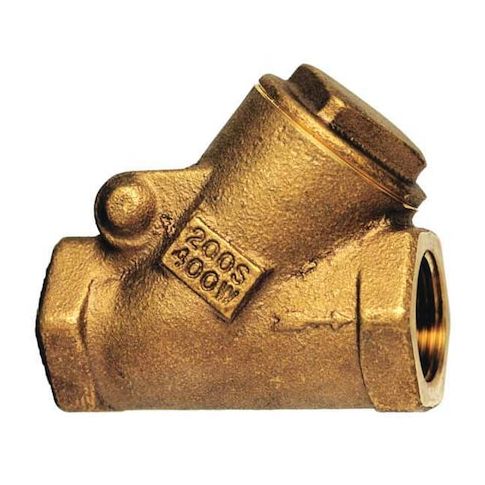

Check Valve, 509Y Series, Y Swing, 3/8 in, FNPT x FNPT, Bronze MPN:509Y 3/8"
Free Shipping
In Stock
This 3/8in FNPT Bronze Swing Y Check Valve from Milwaukee is a reliable and efficient solution for various applications, including plumbing, HVAC, and industrial processes. Its single-flow design and Y swing mechanism ensure smooth fluid flow, while its bronze body and valve components provide durability and resistance to corrosion. With a maximum temperature rating of 425°F and a maximum water pressure of 200 psi, this check valve is suitable for a wide range of applications, including residential and commercial plumbing systems. Its compact size and horizontal/vertical mounting orientation make it easy to install in tight spaces.
Top product features:
- Swing design allows for easy installation and removal of the valve
- Bronze construction provides durability and resistance to corrosion
- Cracking pressure of 0.5 psi ensures precise flow control
Top product applications:
- Plumbing systems for residential and commercial buildings
- Industrial process control systems
- Steam power plants
The MILWAUKEE VALVE 509Y is a 3/8 in. swing Y check valve with a bronze body and FNPT x FNPT connections. It is configured for one-way flow applications in general-purpose service with gas, oil, steam, and water. The Y-style body features a full-flow design
- overall length: 2.13 in.
Key Features:
- Valve type: Swing Y check valve.
- Body material: Cast bronze body with bronze seat and seal materials.
- Check mechanism: Brass swing mechanism.
- Connection size and type: 3/8 in. FNPT x FNPT with female connections on both ends.
- Cracking pressure: 0.5 psi.
- Flow rating: 6 gpm with Cv of 4.3.
- Pressure ratings: 200 psi WOG, 125 psi SWP, and 200 psi at 150 degrees F maximum water pressure.
- Temperature range: -20 degrees F to 425 degrees F.
- Mounting orientation: Horizontal or vertical.
- Standards: ASTM B16, ASTM B505, ASTM B584, MSS SP-80.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.30
- Package Height: 1.30
- Package Weight: 0.55
