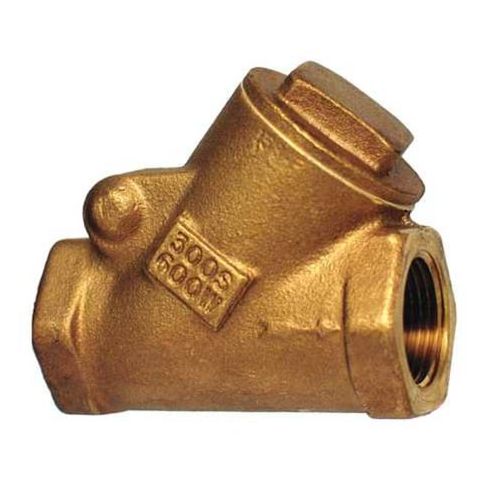

3/4" FNPT Bronze Swing Y Check Valve MPN:515Y 3/4"
Free Shipping
In Stock
The Milwaukee 3/4in FNPT Bronze Swing Y Check Valve is a reliable and durable solution for various applications, including plumbing, HVAC, and industrial systems. Its single-flow design and Y swing mechanism ensure efficient water flow and prevent back-siphonage, making it ideal for use in horizontal and vertical piping configurations. With a maximum temperature rating of 425°F and a maximum water pressure of 300 psi, this check valve is suitable for a range of applications, including residential and commercial plumbing, as well as industrial processes. Its bronze construction and bronze seals provide long-lasting performance and resistance to corrosion.
Top product features:
- It has a single flow design for efficient fluid flow.
- It features a Y swing mechanism for easy installation and maintenance.
- It is made with bronze materials for high-temperature resistance and durability.
Top product applications:
- Water Distribution Systems
- Steam Power Plants
- Industrial Process Control Systems
The MILWAUKEE VALVE 515Y 3/4 in. FNPT bronze swing Y check valve is a general-purpose check valve with a Y-style body and swing mechanism for one-way flow control. It is designed for use with gas, oil, steam, and water, with a full-flow Y-pattern design for one-way flow in compatible threaded piping systems.
Key Features:
- 3/4 in. nominal valve size with FNPT x FNPT threaded connections
- Y-pattern swing check design with single flow path
- Bronze body with cast bronze construction, including bronze check mechanism, seat, and seal
- Rated flow: 18 gpm with a Cv of 13
- Cracking pressure: 0.5 psi
- Pressure ratings: 300 psi WOG, 150 psi SWP, 300 psi at 150 degrees F water pressure, and 150 psi WSP steam pressure
- Operating temperature range: -20 degrees F to 425 degrees F
- Mounting orientation: horizontal or vertical
- Valve series: 515Y
- Overall dimensions: 2.63 in. length, 2 3/8 in. height, 7/8 in. width
- Standards: meets multiple applicable ASTM and MSS standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 2.80
- Package Height: 1.90
- Package Weight: 1.25
