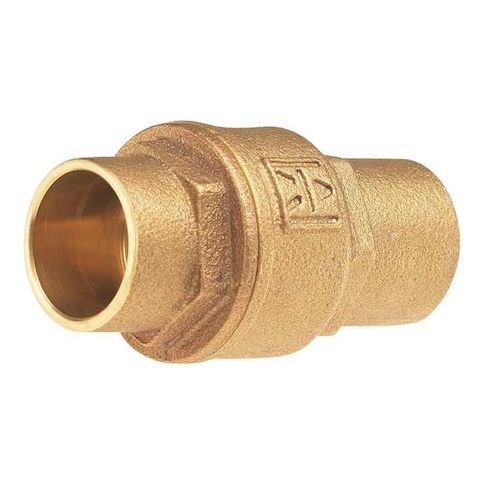

1/2" Solder Low Lead Bronze Spring Check Valve MPN:UP1548T 1/2
Free Shipping
In Stock
The Milwaukee 1/2in Solder Low Lead Bronze Spring Check Valve is a reliable solution for controlling fluid flow in various applications. Its inline spring design ensures a precise and consistent flow rate, while the bronze body and seat materials provide excellent durability and resistance to corrosion. Suitable for use in water and steam systems, this valve can withstand temperatures up to 353°F and pressures up to 250 psi. Ideal for plumbers, HVAC technicians, and industrial professionals, this valve is perfect for residential, commercial, and industrial projects, including heating, cooling, and water treatment systems.
Top product features:
- Inline spring mechanism
- Bronze body and valve components
- Cracking pressure of 0.750 to 1.000 psi
Top product applications:
- Industrial Process Control
- Potable Water Distribution Systems
- Steam-Free Heating Systems
MILWAUKEE VALVE UP1548T is a 1/2 in low-lead bronze spring check valve with solder/sweat x sweat female connections. It is intended for general-purpose service with compatible gas, oil, and water applications, with an inline spring body style for reverse-flow check applications. This valve features a silent check design, a single flow path, and a horizontal mounting orientation with pressure applied from under the disc.
Key Features:
- Nominal valve size: 1/2 in
- Connection type: Sweat x Sweat
- side 1 female sweat, side 2 female sweat
- Body material: Cast bronze
- Valve type and body design: Spring check valve
- inline spring
- inline body style
- Flow capacity: Cv 4.1
- flow 4.1 gpm
- Cracking pressure: 0.750 to 1.000 psi
- Maximum pressure: 250 psi WOG
- maximum water pressure: 250 psi at 150 Degrees F
- Operating temperature range: -20 Degrees F to 353 Degrees F
- Seat material: Bronze
- Seal material: PTFE
- Spring material: Bronze
- NSF certification: NSF 61
- Standards: NSF/ANSI 372
- Overall dimensions: 1.22 in L x 2 13/32 in H
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 1.25
- Package Height: 1.25
- Package Weight: 0.33
