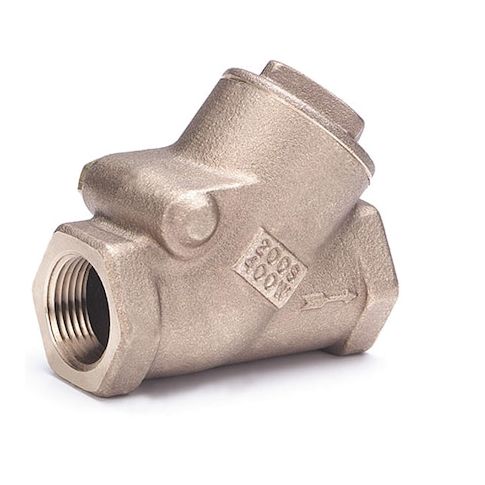

1-1/4" FNPT Bronze Swing Y Check Valve MPN:508 1-1/4"
Free Shipping
In Stock
This 1-1/4in FNPT Bronze Swing Y Check Valve from Milwaukee is designed for horizontal mounting and features a single flow design with a Y swing mechanism. Made from durable bronze, it offers a maximum temperature of 550°F and a minimum temperature of -20°F. The valve's cracking pressure is between 0.500 to 0.750 psi, and it can handle up to 400 psi of water pressure at 150°F. Ideal for use in plumbing, HVAC, and industrial applications, this valve provides reliable check valve functionality and is suitable for use with water and steam.
Top product features:
- Swing design allows for easy installation and maintenance
- Single flow design allows for high flow rates
- Chrome, Cobalt seal material provides resistance to corrosion and wear
Top product applications:
- Hot Water Systems
- Steam Distribution Systems
- Hydronic Heating Systems
The MILWAUKEE VALVE 508 is a 1-1/4 in. swing Y check valve with FNPT threaded connections on both ends. It features a bronze swing check mechanism in a Y-style cast bronze body for one-way flow and backflow-prevention applications in general-purpose piping systems handling gas, oil, steam, and water. The Y-pattern body and full-flow design has a rated flow capacity of 54 gpm and Cv of 39.
Key Features:
- Valve type: Swing Y check valve with Y-style body and swing mechanism
- Size and connections: 1-1/4 in. FNPT x FNPT, female NPT on both ends
- Body and internal materials: Cast bronze body with bronze check mechanism, seat, and seal material
- Flow rating: 54 gpm flow capacity
- Cv 39
- Cracking pressure: 0.500 to 0.750 psi
- Pressure ratings: 400 psi WOG, 400 psi at 150 degrees F water, 200 psi WSP steam
- Temperature range: -20 degrees F to 550 degrees F
- Mounting orientation: Horizontal
- Standard: MSS SP-80 Type 3
- Valve series: 508
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.70
- Package Width: 11.00
- Package Height: 3.30
- Package Weight: 13.55
