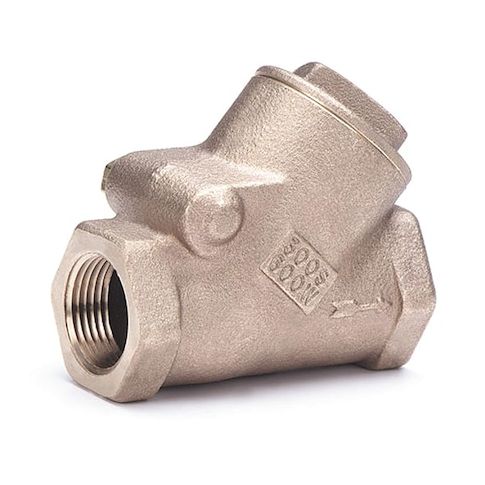

2-1/2" FNPT Bronze Swing Y Check Valve MPN:507 2 1/2
Free Shipping
In Stock
This 2-1/2in FNPT Bronze Swing Y Check Valve from Milwaukee is a reliable and efficient solution for various applications. It features a single flow design and Y swing mechanism, allowing for smooth and unobstructed flow in both horizontal and vertical orientations. Suitable for use in high-temperature environments, this valve can withstand temperatures up to 550°F and pressures up to 600 psi. Ideal for use in water and steam systems, it provides a secure seal and prevents backflow, making it a valuable asset for industrial and commercial applications, including plumbing, HVAC, and process control systems.
Top product features:
- 2-1/2in FNPT Bronze Swing Y Check Valve has a single flow design that allows for efficient fluid flow.
- The valve is designed as a Y swing, which enables easy installation and maintenance.
- The valve has a cracking pressure of 0.750 to 1.000 psi, indicating a precise control over fluid flow.
Top product applications:
- Water treatment systems
- Steam power plants
- Industrial plumbing systems
The Milwaukee Valve 507 is a 2-1/2 in. swing Y check valve with FNPT x FNPT connections and a cast bronze body. It is intended for one-way flow control in gas, oil, steam, and water applications within the stated pressure and temperature ratings. The Y-style body and swing check mechanism feature a full-flow configuration, with a rated flow of 192 gpm and a Cv of 150.
Key Features:
- Valve type: Swing Y check valve with Y-pattern body and swing mechanism.
- Size and connections: 2-1/2 in. nominal valve size with female NPT connections on both ends.
- Body and internal materials: Cast bronze body with bronze check mechanism, bronze seat, and bronze seal material.
- Pressure ratings: 600 psi WOG, 300 psi SWP, and 300 psi WSP
- maximum water pressure 600 psi at 150 degrees F.
- Temperature range: -20 degrees F to 550 degrees F.
- Cracking pressure: 0.750 to 1.000 psi.
- Flow characteristics: Single-flow design, full-flow configuration, 192 gpm flow rating, Cv 150.
- Mounting: Horizontal or vertical installation.
- Dimensions: 7 in. overall length
- 4-3/4 in. cap to inlet center.
- Standards and compliance: Meets multiple ASSE, CSA, NSF, ASTM, and MSS standards.
- Series: 507.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 6.50
- Package Height: 4.10
- Package Weight: 10.69
