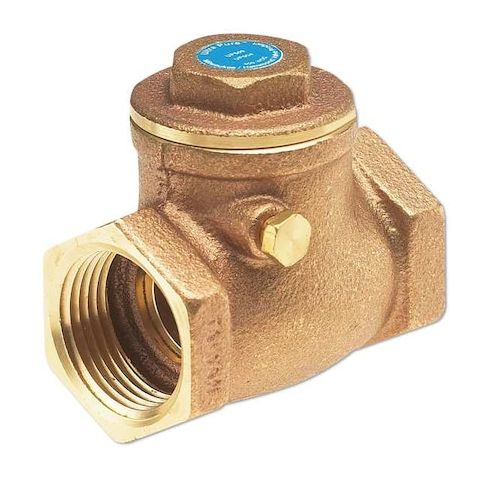

2 in IPT Low Lead Bronze Swing Check Valve MPN:UP509 2
Free Shipping
In Stock
The Milwaukee 2 in IPT Low Lead Bronze Swing Check Valve is a reliable and efficient solution for various applications. Designed for horizontal mounting, this valve prevents backflow and ensures a smooth flow of liquids, making it ideal for use in water treatment, chemical processing, and HVAC systems. The bronze construction provides excellent corrosion resistance and durability, while the low lead design meets or exceeds regulatory requirements. With a flow rate of 131 gpm and a temperature range of -20 to 200°F, this valve is suitable for a wide range of industrial and commercial applications.
Top product features:
- Low lead bronze construction
- Swing check valve mechanism
- Flow rate of 131 gpm
Top product applications:
- Hot Water Circulation Systems
- Steam Traps
- Boiler Feed Systems
MILWAUKEE VALVE UP509 2 is a 2 in low lead bronze swing check valve with an inline body and FNPT x FNPT threaded connections. It is intended for one-way flow control in compatible gas, oil, and water applications, using a swing check mechanism for reverse-flow control. The valve has a full-flow design, a Cv of 131, and a rated flow of 131 gpm.
Key Features:
- 2 in low lead bronze swing check valve with inline body and horizontal mounting orientation
- Bronze body, check mechanism, seat, and seal
- FNPT x FNPT threaded female connections on both sides
- Maximum pressure rating: 300 psi non-shock CWP
- 300 psi at 150 degrees F maximum water pressure
- Cracking pressure: 0.750 to 1.000 psi
- Operating temperature range: -20 degrees F to 200 degrees F
- Single full-flow design
- Cv: 131
- rated flow: 131 gpm
- Overall length: 4.75 in
- overall height: 2 13/16 in
- Standards: NSF 61, ANSI 372
- Valve series: UP509
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.90
- Package Width: 10.40
- Package Height: 5.20
- Package Weight: 34.75
