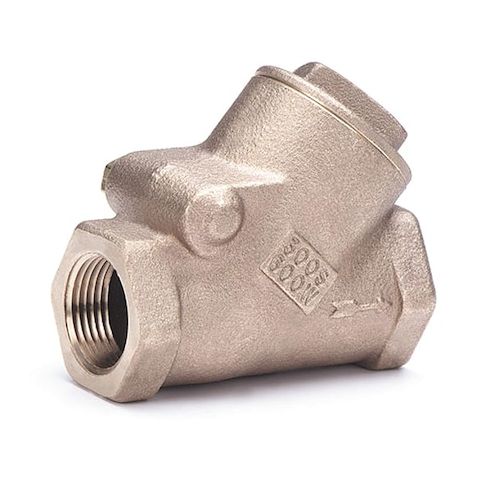

Swing Y Check Valve, 507 Series, 3/8 in, FNPT x FNPT, Bronze Body MPN:507 3/8
Free Shipping
In Stock
The Milwaukee 3/8in FNPT Bronze Swing Y Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, this check valve features a single flow design with a Y swing mechanism, ensuring smooth and uninterrupted flow. The bronze body and chrome-cobalt seal provide excellent durability and resistance to corrosion, while the valve can withstand temperatures up to 550°F. Ideal for use in water and steam systems, this valve is also suitable for applications in industrial and commercial settings, including HVAC, plumbing, and process control.
Top product features:
- Swing design allows for easy installation and maintenance of the valve.
- Chrome, Cobalt seal material provides long-lasting corrosion resistance.
- Flow rate of 6 gpm allows for efficient fluid transfer.
Top product applications:
- Water Supply Systems
- Steam Traps
- Filtration Systems
MILWAUKEE VALVE Series 507 is a 3/8 in. swing Y check valve with a cast bronze body and FNPT x FNPT connections. It is intended for one-way flow applications in general purpose piping systems with gas, oil, steam, and water. The valve includes a Y-style body and swing check mechanism
- rated flow: 6 gpm
- Cv: 4.3.
Key Features:
- Valve type: Swing Y check valve with Y-pattern body design
- Size: 3/8 in. nominal valve size with 3/8 in. connection size on both ends
- Connections: Female NPT x Female NPT
- Body material: Cast bronze
- Check mechanism: Swing
- Flow design: Single
- Media compatibility: Gas, oil, steam, water
- Flow rating: 6 gpm
- Cv: 4.3
- Pressure ratings: 600 psi WOG, 300 psi SWP, 300 psi WSP, 600 psi at 150 degrees F water pressure
- Temperature range: -20 degrees F to 550 degrees F
- Mounting orientation: Horizontal or vertical
- Seat material: Bronze
- Seal material: Bronze and Chrome, Cobalt
- Overall length: 2.25 in.
- Standards: ASTM A276 TY.304, ASTM B16, ASTM B61, MSS SP-80
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.10
- Package Height: 1.20
- Package Weight: 0.57
