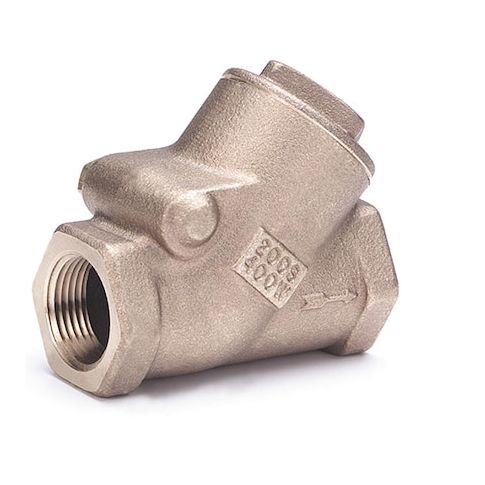

3/4" FNPT Bronze Swing Y Check Valve MPN:508 3/4"
Free Shipping
In Stock
This 3/4in FNPT Bronze Swing Y Check Valve from Milwaukee is a reliable and durable solution for various applications. Ideal for use in water supply lines, hydronic heating systems, and steam distribution networks, this valve prevents backflow and ensures safe operation. Its bronze body and chrome-cobalt seal provide excellent corrosion resistance and high-temperature performance, while its compact design makes it suitable for tight spaces. With a flow rate of 18 gpm and a maximum pressure rating of 400 psi, this valve is perfect for residential and commercial plumbing projects, including new construction and retrofitting existing systems.
Top product features:
- The product has a single flow design, allowing for efficient fluid flow.
- The valve body is made of bronze, providing corrosion resistance and durability.
- The check valve has a Y swing design, enabling easy installation and maintenance.
Top product applications:
- Cooling systems in commercial and industrial applications
- Heating systems in residential and commercial buildings
- Water treatment systems in power generation and manufacturing facilities
The MILWAUKEE VALVE 508 3/4 in. FNPT bronze swing Y check valve features a Y-style body and swing mechanism for applications requiring flow in one direction. Listed applications include gas, oil, steam, and water service, with female NPT connections on both ends for 3/4 in. piping. The Y-pattern body and full-flow design are intended for forward-flow applications with a swing check mechanism in horizontal installations.
Key Features:
- Valve type: Swing Y check valve
- Body material: Cast bronze
- Check mechanism: Bronze swing
- Connections: 3/4 in. FNPT x FNPT
- Mounting orientation: Horizontal
- Cracking pressure: 0.500 to 0.750 psi
- Flow rating: 18 gpm
- Cv: 13
- Pressure ratings: 400 psi WOG
- 200 psi SWP/WSP
- 400 psi maximum water pressure at 150 degrees F
- Temperature range: -20 degrees F to 550 degrees F
- Seat material: Bronze
- Seal material: Viton
- Standard: MSS SP-80 Type 3
- Overall length: 3 in.
- Overall height/cap to inlet center: 1 15/16 in.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 0.75
- Package Height: 1.94
- Package Weight: 1.25
