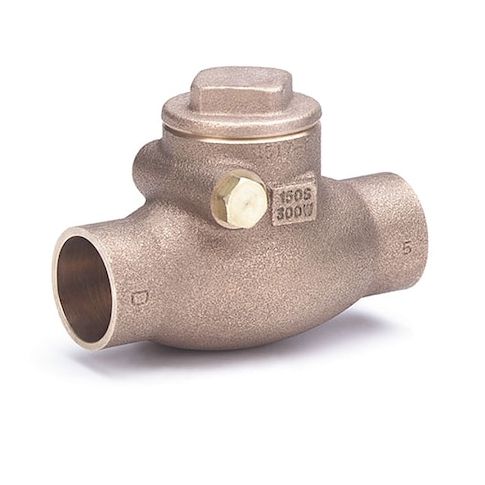

Swing Check Valve, 1509 Series, 2 in, Sweat x Sweat, Bronze Body MPN:1509 2"
Free Shipping
In Stock
The Milwaukee 2in Solder Bronze Swing Check Valve is a reliable and durable solution for various piping applications. Designed for horizontal installation, this valve ensures one-way flow and prevents backpressure, making it ideal for use in commercial and industrial settings. Its bronze construction and robust design withstand high temperatures and pressures, with a maximum water pressure of 200 psi and a maximum steam pressure of 125 psi WSP. The valve's compact size and ease of installation make it a convenient choice for plumbers and contractors, while its long-lasting performance ensures years of trouble-free operation.
Top product features:
- Solder bronze construction allows for high-temperature resistance up to 406 degrees F.
- The swing design allows for easy inline installation and maintenance.
- The valve can handle a maximum water pressure of 200 psi at 150 degrees F.
Top product applications:
- Water Supply Systems
- Steam Distribution Systems
- HVAC Systems
The MILWAUKEE VALVE 1509 is a 2 in swing check valve with an inline bronze body and sweat x sweat connections. It uses a hinged swing mechanism to support one-way flow and check reverse flow in general purpose piping systems handling gas, oil, steam, or water. This valve has a horizontal mounting orientation and a full-flow, single-flow design.
Key Features:
- 2 in nominal valve size with female sweat x sweat connections for soldered installation.
- Bronze body, check mechanism, seat, and seal material.
- Inline swing mechanism with horizontal mounting orientation.
- Cracking pressure: 0.500 to 0.750 psi.
- Flow capacity: 131 gpm with Cv of 131.
- Pressure ratings: 200 psi WOG, 125 psi SWP, and 200 psi at 150 degrees F maximum water pressure.
- Maximum steam pressure: 125 psi WSP.
- Operating temperature range: -20 degrees F to 406 degrees F.
- Overall length: 6.13 in
- cap to inlet center/overall height: 2-13/16 in.
- Standards: MSS SP-80 Type 3.
- Valve series: 1509.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 5.00
- Package Height: 3.00
- Package Weight: 4.40
