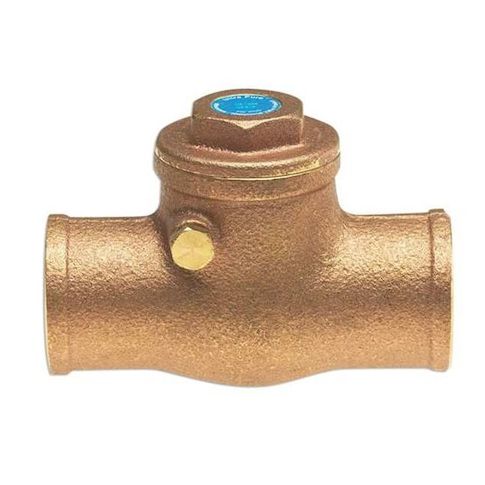

1" Sweat Low Lead Bronze Spring Check Valve MPN:UP1509 1

• The MILWAUKEE VALVE UP1509 is a 1 in. low lead bronze swing check valve with an inline body design and sweat x sweat connections. It is designed for one-way flow control in gas, oil, and water service and uses a swing check mechanism to help prevent backflow. This valve is rated for horizontal mounting with pressure coming from under the disc. Full flow: Yes.

  Key Features:

  • 1 in. nominal valve size with 1 in. female sweat connections on both sides
  • Low lead bronze body with brass check mechanism
  • Inline swing design
  • type: horizontal swing
  • For use with gas, oil, and water
  • Flow capacity: 31 gpm
  • Cv: 31
  • Cracking pressure: 0.750 to 1.000 psi
  • Maximum pressure: 300 psi non-shock CWP
  • maximum water pressure: 300 psi at 150 degrees F
  • Operating temperature range: -20 degrees F to 200 degrees F
  • Full flow: Yes
  • Certification: NSF 61
  • Standard: NSF/ANSI 372
  • Overall length: 4 in.
  • overall height: 1 31/32 in.
  • width: 1 in.
