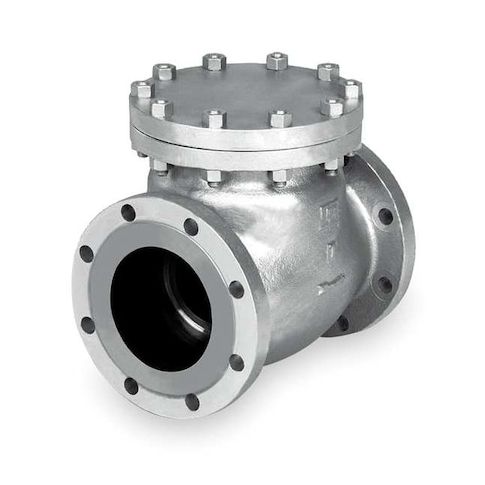

2" Flanged Cast Steel Swing Check Valve MPN:1570 CB2 2"
Free Shipping
In Stock
The 2in Flanged Cast Steel Swing Check Valve from Milwaukee is a reliable and efficient solution for various industrial applications. Suitable for use in horizontal piping systems, this valve ensures a smooth flow of fluids while preventing backflow. Its cast steel construction provides excellent durability and resistance to high temperatures, making it ideal for use with water, steam, and other fluids. With a maximum temperature rating of 1,000°F and a maximum water pressure of 285 psi, this valve is perfect for use in power plants, chemical processing, and other high-pressure applications where reliability and safety are paramount.
Top product features:
- Cast steel body provides durability and resistance to corrosion and wear.
- Chrome, Cobalt seal material ensures a tight shut-off and long valve life.
- Swing check valve design allows for inline installation and easy maintenance.
Top product applications:
- Steam Distribution Systems
- Industrial Process Control Systems
- Power Generation Systems
The MILWAUKEE VALVE 1570 CB2 is a 2 in flanged cast steel swing check valve with an inline body design. It features a hinged swing check mechanism for one-direction flow applications. Rated for steam and water service, it is for horizontal mounting in piping systems.
Key Features:
- 2 in nominal valve size with flange x flange connections
- Cast steel body with steel check mechanism
- Swing check design with inline body style and single flow design
- ANSI flange class: Class 150
- Media: steam, water
- Cracking pressure: 2 psi
- Flow capacity: 137 gpm
- Cv: 156
- Full flow: yes
- Maximum water pressure: 285 psi at 100 degrees F
- Maximum steam pressure: 200 psi WSP
- Operating temperature range: -20 degrees F to 1,000 degrees F
- Seat and seal material: cobalt chrome alloy
- Overall length: 8 in
- overall height: 6-9/64 in
- width: 5.98 in
- Standards: API 8 Trim (Cr-13 Stem/Disc Face HF CoCr Seat Face), ASTM A216-WCB
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 9.00
- Package Height: 14.00
- Package Weight: 39.95
