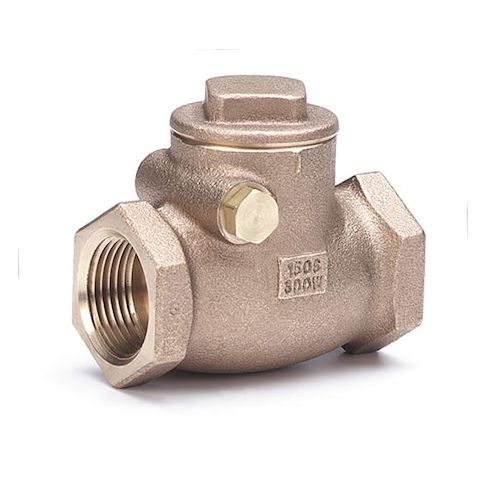

Swing Check Valve, 510T Series, 3/4 in, FNPT x FNPT, Bronze Body MPN:510T 3/4
Free Shipping
In Stock
This 3/4in FNPT Bronze Swing Check Valve from Milwaukee is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical positions, it ensures smooth flow and prevents backflow in pipes. The valve's bronze body and PTFE seal provide excellent durability and resistance to corrosion, while its cracking pressure range of 0.750 to 1.000 psi ensures precise control. Ideal for use in water treatment, HVAC, and plumbing systems, this valve offers a maximum temperature range of 406°F and a maximum water pressure of 300 psi, making it a versatile and long-lasting addition to any system.
Top product features:
- Swing design allows for easy manual operation of the valve
- PTFE seal material provides a non-stick surface for easy cleaning and maintenance
- Bronze construction offers high-temperature resistance up to 406°F
Top product applications:
- Water Supply Systems
- Steam Distribution Systems
- Industrial Process Control Systems
The Milwaukee Valve 510T is a 3/4 in inline swing check valve with FNPT x FNPT threaded connections. It uses a hinged swing mechanism and is intended for one-direction flow applications and reverse-flow checking. This valve is listed for gas, oil, steam, and water piping applications.
Key Features:
- Bronze body with bronze seat
- Swing check mechanism with PTFE check mechanism material and PTFE seal material
- 3/4 in nominal valve size with female NPT connections on both ends
- Inline body design with single flow path
- Flow capacity: 18 gpm
- Cv: 18
- Cracking pressure: 0.750 to 1.000 psi
- Maximum operating pressure: 300 psi
- Maximum water pressure: 300 psi at 150 degrees F
- Maximum steam pressure: 150 psi WSP
- Operating temperature range: -20 degrees F to 406 degrees F
- Overall length: 2.63 in
- Mounting orientation: horizontal or vertical
- Standards: ASTM B16, ASTM B62, MSS SP-80
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.50
- Package Height: 1.60
- Package Weight: 0.86
