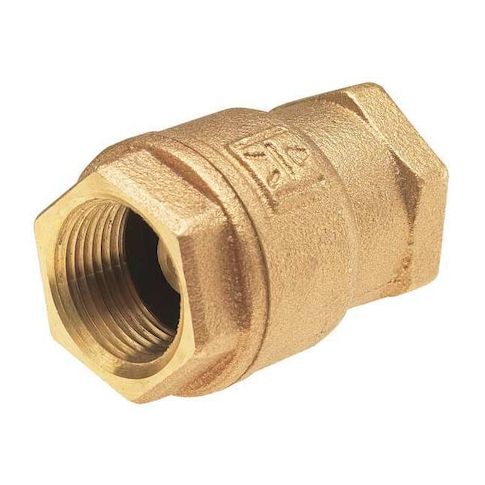

3/8" Threaded Low Lead Bronze Spring Check Valve MPN:UP548T 3/8
Free Shipping
In Stock
The Milwaukee 3/8in Threaded Low Lead Bronze Spring Check Valve is a reliable and efficient solution for a variety of applications. Designed for inline use, this valve features a single flow design and a spring-loaded mechanism to prevent backflow and ensure a safe and secure connection. Suitable for use in water and steam systems, it can withstand temperatures up to 353°F and pressures up to 250 psi. Ideal for plumbing, HVAC, and industrial applications, this valve offers long-lasting performance and durability. Its compact size and lightweight design make it easy to install and maintain.
Top product features:
- This product is a check valve that allows fluid to flow in one direction while preventing backflow.
- The valve has a spring-loaded mechanism that helps to seal the valve when fluid is not flowing.
- The valve is made of bronze, which provides high temperature and corrosion resistance.
Top product applications:
- Water supply systems
- Steam trap systems
- Industrial piping systems
The MILWAUKEE VALVE UP548T is a 3/8 in low lead spring check valve with an inline bronze body and female NPT threaded connections on both ends. It is intended for general purpose service with gas, oil, and water and uses a spring-assisted check design for reverse-flow control applications. This valve is rated for horizontal mounting and features a spring-assisted closing design.
Key Features:
- 3/8 in nominal valve size with 3/8 in FNPT x FNPT threaded connections
- Cast bronze body with bronze seat and bronze spring
- PTFE seal and PTFE check mechanism material
- Inline spring body design with single flow path
- Cracking pressure: 0.750 to 1.000 psi
- Flow rate: 2.5 gpm
- Cv: 2.5
- Maximum pressure: 250 psig WOG
- maximum water pressure: 250 psi at 150 degrees F
- Operating temperature range: -20 degrees F to 353 degrees F
- NSF 61 certified
- meets NSF/ANSI 372
- Overall length: 1.22 in
- overall height: 1 31/32 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.30
- Package Height: 1.30
- Package Weight: 0.34
