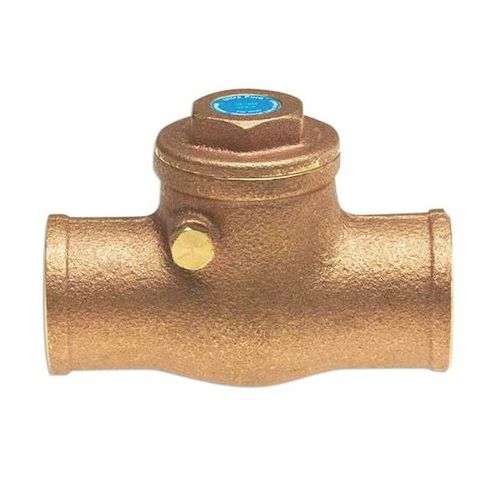

2" Sweat Low Lead Bronze Spring Check Valve MPN:UP1509 2
Free Shipping
In Stock
This 2in Sweat Low Lead Bronze Spring Check Valve from Milwaukee is a reliable and efficient solution for various applications where fluid flow control is crucial. Its single flow design and inline swing mechanism ensure smooth operation, while its bronze body and seals provide resistance to corrosion and wear. Suitable for use in water and steam systems, this valve is ideal for horizontal mounting and can withstand temperatures up to 200°F. Its high flow rate of 131 gpm makes it suitable for a range of applications, including commercial and industrial plumbing, HVAC systems, and water treatment facilities.
Top product features:
- Inline swing mechanism
- Flow rate of 131 gpm
- Seal material made of bronze
Top product applications:
- Water Supply Systems
- Steam Traps
- Industrial Process Control
The MILWAUKEE VALVE UP1509 is a 2 in low lead bronze swing check valve with an inline body and sweat x sweat connections. It is intended for one-way flow in general purpose service with gas, oil, and water, using a swing check mechanism intended to restrict reverse flow. This valve is rated for horizontal mounting with pressure coming from under the disc and features NSF 61 and NSF/ANSI 372 listings.
Key Features:
- 2 in nominal valve size with 2 in female sweat connections on both ends
- Inline swing body design with single flow path and standard non-silent operation
- Bronze body, bronze check mechanism, and bronze seal material
- Seat material: brass
- Flow capacity: 131 gpm
- Cv: 131
- Cracking pressure: 0.750 to 1.000 psi
- Maximum pressure: 300 psi non-shock CWP
- maximum water pressure: 300 psi at 150 degrees F
- Operating temperature range: -20 degrees F to 200 degrees F
- Mounting orientation: horizontal
- mounting position: pressure coming from under the disc
- Overall length: 6 1/8 in
- overall height: 2 13/16 in
- Standards and certifications: NSF 61, NSF/ANSI 372
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.20
- Package Width: 4.40
- Package Height: 3.00
- Package Weight: 4.25
