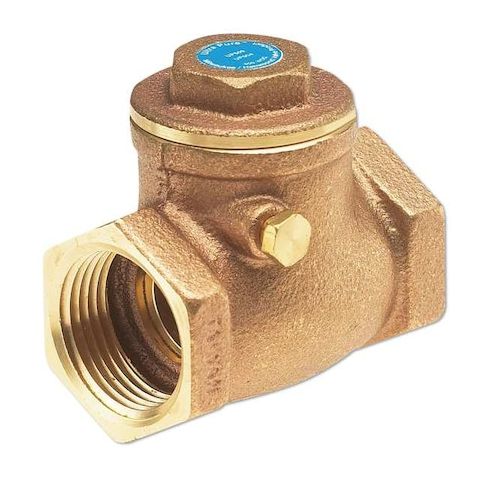

3/4" Threaded Low Lead Bronze Spring Check Valve MPN:UP509 3/4
Free Shipping
In Stock
This 3/4in Threaded Low Lead Bronze Spring Check Valve from Milwaukee is ideal for various applications requiring reliable flow control. Its single flow design and inline swing mechanism ensure efficient operation in horizontal mounting orientations. The valve features a bronze body and seat, with a brass seat material, and is suitable for use in water applications up to 300 psi at 150 Degrees F. It can handle 18 gallons per minute of flow and operates within a temperature range of -20 to 200 Degrees F. This valve is perfect for use in industrial, commercial, and residential plumbing systems.
Top product features:
- Threaded design for easy installation
- Low lead bronze material for reduced corrosion and increased durability
- Swing mechanism for automatic shut-off in case of backflow
Top product applications:
- Industrial Water Treatment Systems
- Hydraulic Systems
- Pump Skids
The MILWAUKEE VALVE UP509 is a 3/4 in. low-lead bronze swing check valve with female NPT threaded connections on both ends. It is intended for one-way flow in gas, oil, and water service and uses an inline swing mechanism to reduce backflow. This valve has a horizontal mounting orientation, a full-flow design, and NSF 61 and NSF/ANSI 372 listings.
Key Features:
- 3/4 in. valve with FNPT x FNPT threaded ends
- Bronze body with brass check mechanism
- Swing check design with inline body style and one-way flow configuration
- Maximum pressure rating: 300 psi non-shock CWP
- 300 psi maximum water pressure at 150 degrees F
- Temperature range: -20 degrees F to 200 degrees F
- Cracking pressure: 0.750 to 1.000 psi
- Flow capacity: 18 gpm with a Cv of 18
- Viton seal with brass seat
- Horizontal mounting with pressure applied from under the disc
- Listings: NSF 61 and NSF/ANSI 372
- Dimensions: 2.63 in. overall length
- 1-11/16 in. overall height
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.88
- Package Width: 11.88
- Package Height: 3.00
- Package Weight: 17.01
